Vector Calculus

Vector Fields

A vector field is an assignment of a vector to each point in a subset of Euclidean space.

Learning Objectives

Describe construction of vector fields

Key Takeaways

Key Points

  • A vector field in the plane, for instance, can be visualized as a collection of arrows with a given magnitude and direction each attached to a point in the plane.
  • Vector fields can be constructed out of scalar fields using the gradient operator.
  • Vector fields can be thought to represent the velocity of a moving flow in space, and this physical intuition leads to notions such as the divergence (the rate of change of volume of a flow) and curl (the rotation of a flow).


Key Terms

  • vector field: a construction in which each point in a Euclidean space is associated with a vector; a function whose range is a vector space
  • bijective: both injective and surjective


In vector calculus, a vector field is an assignment of a vector to each point in a subset of Euclidean space. A vector field in the plane, for instance, can be visualized as a collection of arrows with a given magnitude and direction each attached to a point in the plane. Vector fields are often used to model the speed and direction of a moving fluid throughout space, for example, or the strength and direction of some force, such as the magnetic or gravitational force, as it changes from point to point.


Fig 1

The elements of differential and integral calculus extend to vector fields in a natural way. When a vector field represents force, the line integral of a vector field represents the work done by a force moving along a path, and, under this interpretation, conservation of energy is exhibited as a special case of the fundamental theorem of calculus. Vector fields can be thought to represent the velocity of a moving flow in space, and this physical intuition leads to notions such as the divergence (the rate of change of volume of a flow) and curl (the rotation of a flow).

Gradient field: Vector fields can be constructed out of scalar fields using the gradient operator (denoted by the del: ∇). A vector field V defined on a set S is called a gradient field or a conservative field if there exists a real-valued function (a scalar field) f on S such that:

V=∇f=(∂f∂x1,∂f∂x2,∂f∂x3,…,∂f∂xn)\displaystyle{V = \nabla f = \left(\frac{\partial f}{\partial x_1}, \frac{\partial f}{\partial x_2}, \frac{\partial f}{\partial x_3}, \dots,\frac{\partial f}{\partial x_n}\right)}


The associated flow is called the gradient flow.

Examples

  • A vector field for the movement of air on Earth will associate for every point on the surface of the Earth a vector with the wind speed and direction for that point.
  • A gravitational field generated by any massive object is a vector field. For example, the gravitational field vectors for a spherically symmetric body would all point towards the sphere's center, with the magnitude of the vectors reducing as radial distance from the body increases.
  • Magnetic field lines can be revealed using small iron filings.
  • In the case of the velocity field of a moving fluid, a velocity vector is associated to each point in the fluid.


Conservative Vector Fields

A conservative vector field is a vector field which is the gradient of a function, known in this context as a scalar potential.

Learning Objectives

Identify properties of conservative vector fields

Key Takeaways

Key Points

  • Conservative vector fields have the following property: The line integral from one point to another is independent of the choice of path connecting the two points; it is path-independent.
  • Conservative vector fields are also irrotational, meaning that (in three dimensions) they have vanishing curl.
  • A vector field
    v\mathbf{v}
    is said to be conservative if there exists a scalar field
    φ\varphi
    such that
    v=∇φ\mathbf{v}=\nabla\varphi
    .


Key Terms

  • vector field: a construction in which each point in a Euclidean space is associated with a vector; a function whose range is a vector space
  • bijective: both injective and surjective


A conservative vector field is a vector field which is the gradient of a function, known in this context as a scalar potential. Conservative vector fields have the following property: The line integral from one point to another is independent of the choice of path connecting the two points; it is path-independent.

Conversely, path independence is equivalent to the vector field's being conservative. Conservative vector fields are also irrotational, meaning that (in three dimensions) they have vanishing curl. In fact, an irrotational vector field is necessarily conservative provided that a certain condition on the geometry of the domain holds: it must be simply connected.

Definition: A vector field
v\mathbf{v}
is said to be conservative if there exists a scalar field
φ\varphi
such that
v=∇φ\mathbf{v}=\nabla\varphi
. Here
∇φ\nabla\varphi
denotes the gradient of
φ\varphi
. When the above equation holds,
φ\varphi
is called a scalar potential for
v\mathbf{v}
.

For any scalar field
φ\varphi
:
∇×∇φ=0\nabla \times \nabla \varphi=0
. Therefore, the curl of a conservative vector field
v\mathbf{v}
is always
00
. A vector field
v\mathbf{v}
, whose curl is zero, is called irrotational.


Fig 1: The above field

v(x,y,z)=(−yx2+y2,xx2+y2,0)\mathbf{v}(x,y,z) = (\frac{-y}{x^2+y^2}, \frac{x}{x^2+y^2}, 0)
includes a vortex at its center, meaning it is non-irrotational; it is neither conservative, nor does it have path independence. However, any simply connected subset that excludes the vortex line
(0,0,z)(0,0,z)
will have zero curl,
∇v=0\nabla \mathbf{v}=0
. Such vortex-free regions are examples of irrotational vector fields.

Path Independence

A key property of a conservative vector field is that its integral along a path depends only on the endpoints of that path, not the particular route taken. Suppose that
S⊆R3S\subseteq\mathbb{R}^3
is a region of three-dimensional space, and that
PP
is a rectifiable path in
SS
with start point
AA
and end point
BB
. If
v=∇φ\mathbf{v}=\nabla\varphi
 is a conservative vector field, then the gradient theorem states that
∫Pv⋅dr=φ(B)−φ(A)\int_P \mathbf{v}\cdot d\mathbf{r}=\varphi(B)-\varphi(A)
. This holds as a consequence of the Chain Rule and the Fundamental Theorem of Calculus. An equivalent formulation of this is to say that
∮v⋅dr=0\oint \mathbf{v}\cdot d\mathbf{r}=0
 for every closed loop in
SS
.


Line Integral Over Scalar Field: The line integral over a scalar field

ff
can be thought of as the area under the curve
CC
along a surface
z=f(x,y)z=f(x,y)
, described by the field.

Line Integrals

A line integral is an integral where the function to be integrated is evaluated along a curve.

Learning Objectives

Calculate the value of a line integral

Key Takeaways

Key Points

  • The value of the line integral is the sum of the values of the field at all points on the curve, weighted by some scalar function on the curve (commonly arc length or, for a vector field, the scalar product of the vector field with a differential vector in the curve).
  • Many simple formulae in physics (for example,
    W=F⋅sW=F·s
    ) have natural continuous analogs in terms of line integrals (
    W=∫CF⋅dsW= \int_C F\cdot ds
    ). The line integral finds the work done on an object moving through an electric or gravitational field, for example.
  • In qualitative terms, a line integral in vector calculus can be thought of as a measure of the total effect of a given field along a given curve.


Key Terms

  • vector field: a construction in which each point in a Euclidean space is associated with a vector; a function whose range is a vector space
  • bijective: both injective and surjective


A line integral (sometimes called a path integral, contour integral, or curve integral) is an integral where the function to be integrated is evaluated along a curve.

The function to be integrated may be a scalar field or a vector field. The value of the line integral is the sum of the values of the field at all points on the curve, weighted by some scalar function on the curve (commonly arc length or, for a vector field, the scalar product of the vector field with a differential vector in the curve). This weighting distinguishes the line integral from simpler integrals defined on intervals. Many simple formulae in physics (for example,
W=F⋅sW=F·s
) have natural continuous analogs in terms of line integrals (
W=∫CF⋅dsW= \int_C F\cdot ds
). The line integral finds the work done on an object moving through an electric or gravitational field, for example.

In qualitative terms, a line integral in vector calculus can be thought of as a measure of the total effect of a given field along a given curve. More specifically, the line integral over a scalar field can be interpreted as the area under the field carved out by a particular curve. This can be visualized as the surface created by
z=f(x,y)z = f(x,y)
 and a curve
CC
in the
xyxy
-plane. The line integral of
ff
would be the area of the "curtain" created when the points of the surface that are directly over
CC
are carved out.

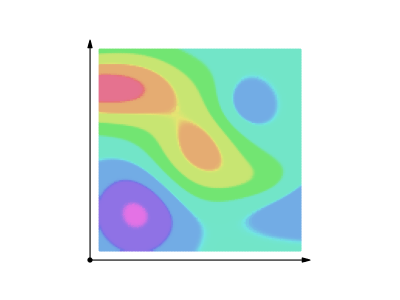

Line Integral Over Scalar Field: The line integral over a scalar field

ff
can be thought of as the area under the curve
CC
along a surface
z=f(x,y)z = f(x,y)
, described by the field.

Line Integral of a Scalar Field

For some scalar field
f:U⊆Rn→Rf:U \subseteq R^n \to R
, the line integral along a piecewise smooth curve
C⊂UC \subset U
 is defined as:

∫Cf ds=∫abf(r(t))∣r′(t)∣ dt\int_C f\, ds = \int_a^b f(\mathbf{r}(t)) |\mathbf{r}'(t)|\, dt


where
r:[a,b]→Cr: [a, b] \to C
 is an arbitrary bijective parametrization of the curve
CC
 such that
r(a)r(a)
and
r(b)r(b)
give the endpoints of
CC
 and
aa
.

Line Integral of a Vector Field

For a vector field
F:U⊆Rn→Rn\mathbf{F}: U \subseteq R^n \to R^n
, the line integral along a piecewise smooth curve
C⊂UC \subset U
, in the direction of
rr
, is defined as:

∫CF(r)⋅ dr=∫abF(r(t))⋅r′(t) dt\displaystyle{\int_C \mathbf{F}(\mathbf{r})\cdot\,d\mathbf{r} = \int_a^b \mathbf{F}(\mathbf{r}(t))\cdot\mathbf{r}'(t)\,dt}


where
⋅\cdot
is the dot product and
r:[a,b]→Cr: [a, b] \to C
 is a bijective parametrization of the curve
CC
 such that
r(a)r(a)
 and
r(b)r(b)
give the endpoints of
CC
.

Fundamental Theorem for Line Integrals

Gradient theorem says that a line integral through a gradient field can be evaluated from the field values at the endpoints of the curve.

Learning Objectives

Discuss application of the gradient theorem in physics

Key Takeaways

Key Points

  • The gradient theorem implies that line integrals through irrotational vector fields are path-independent.
  • Work done by conservative forces, described by a vector field, does not depend on the path followed by the object, but only the end points, as the above equation shows.
  • Any conservative vector field can be expressed as the gradient of a scalar field.


Key Terms

  • differentiable: having a derivative, said of a function whose domain and co-domain are manifolds
  • vector field: a construction in which each point in a Euclidean space is associated with a vector; a function whose range is a vector space
  • conservative force: a force with the property that the work done in moving a particle between two points is independent of the path taken


The gradient theorem, also known as the fundamental theorem of calculus for line integrals, says that a line integral through a gradient field can be evaluated by evaluating the original scalar field at the endpoints of the curve.

Let
φ:U⊆Rn→R\varphi: U \subseteq \mathbb{R}^n \to \mathbb{R}
. This holds that:

φ(q)−φ(p)=∫γ[p, q]∇φ(r)⋅dr\displaystyle{\varphi\left(\mathbf{q}\right)-\varphi\left(\mathbf{p}\right) = \int_{\gamma[\mathbf{p},\,\mathbf{q}]} \nabla\varphi(\mathbf{r})\cdot d\mathbf{r}}


It is a generalization of the fundamental theorem of calculus to any curve in a plane or space (generally
nn
-dimensional) rather than just the real line.

The gradient theorem implies that line integrals through irrotational vector fields are path-independent. In physics this theorem is one of the ways of defining a "conservative force." By placing
φ\varphi
as potential,
∇\nabla
is a conservative field. Work done by conservative forces does not depend on the path followed by the object, but only the end points, as the above equation shows.


Electric Field Lines of a Positive Charge: Electric field lines emanating from a point where positive electric charge is suspended over a negatively charged infinite sheet. Electric field is a vector field which can be represented as a gradient of a scalar field, called electric potential. Therefore, electric force is a conservative force.

The gradient theorem also has an interesting converse: any conservative vector field can be expressed as the gradient of a scalar field. Just like the gradient theorem itself, this converse has many striking consequences and applications in both pure and applied mathematics

Proof

If
φ\varphi
 is a differentiable function from some open subset
UU
 (of
RnR^n
) to
RR
, and if
rr
is a differentiable function from some closed interval
[a,b][a,b]
to
UU
, then by the multivariate chain rule, the composite function
∘r\circ r
is differentiable on
(a,b)(a,b)
and
ddt(φ∘r)(t)=∇φ(r(t))⋅r′(t)\frac{d}{dt}(\varphi \circ \mathbf{r})(t)=\nabla \varphi(\mathbf{r}(t)) \cdot \mathbf{r}'(t)
 for for all
tt
in
(a,b)(a,b)
. Here the
⋅\cdot
denotes the usual inner product.

Now suppose the domain
UU
 of
φ\varphi
contains the differentiable curve
γ\gamma
with endpoints
pp
and
qq
(oriented in the direction from
pp
to
qq
). If
rr
parametrizes for
tt
 in
[a,b][a,b]
, then the above shows that

∫_γ∇φ(u)⋅du=∫_ab∇φ(r(t))⋅r′(t)dt=∫_abddtφ(r(t))dt=φ(r(b))−φ(r(a))=φ(q)−φ(p)\begin{align} \int\text{\textunderscore}{\gamma} \nabla\varphi(\mathbf{u}) \cdot d\mathbf{u} &=\int\text{\textunderscore}a^b \nabla\varphi(\mathbf{r}(t)) \cdot \mathbf{r}'(t)dt \\ &=\int\text{\textunderscore}a^b \frac{d}{dt}\varphi(\mathbf{r}(t))dt \\ &=\varphi(\mathbf{r}(b))-\varphi(\mathbf{r}(a))\\ &=\varphi\left(\mathbf{q}\right)-\varphi\left(\mathbf{p}\right) \end{align}


where the definition of the line integral is used in the first equality and the fundamental theorem of calculus is used in the third equality.

Green's Theorem

Green's theorem gives relationship between a line integral around closed curve
CC
and a double integral over plane region
DD
bounded by
CC
.

Learning Objectives

Explain the relationship between the Green's theorem, the Kelvin–Stokes theorem, and the divergence theorem

Key Takeaways

Key Points

  • Green's theorem is a special case of the Kelvin–Stokes theorem, when applied to a region in the
    xyxy
    -plane.
  • Considering only two-dimensional vector fields, Green's theorem is equivalent to the two-dimensional version of the divergence theorem.
  • Green's theorem can be used to compute area by line integral.


Key Terms

  • double integral: An integral extended to functions of more than one real variable
  • line integral: An integral the domain of whose integrand is a curve.


Green's theorem gives the relationship between a line integral around a simple closed curve
CC
and a double integral over the plane region
DD
bounded by
CC
.

Let
CC
be a positively oriented, piecewise smooth, simple closed curve in a plane, and let
DD
be the region bounded by
CC
. If
LL
and
MM
are functions of
(x,y)(x,y)
 defined on an open region containing
DD
and have continuous partial derivatives there, then:

∮C(L dx+M dy)=∬D(∂M∂x−∂L∂y) dx dy\displaystyle{\oint_{C} (L\, \mathrm{d}x + M\, \mathrm{d}y) = \iint_{D} \left(\frac{\partial M}{\partial x} - \frac{\partial L}{\partial y}\right)\, \mathrm{d}x\, \mathrm{d}y}


where the path of integration along
CC
is counterclockwise.

In physics, Green's theorem is mostly used to solve two-dimensional flow integrals, stating that the sum of fluid outflows at any point inside a volume is equal to the total outflow summed about an enclosing area. In plane geometry and area surveying, Green's theorem can be used to determine the area and centroid of plane figures solely by integrating over the perimeter.

Green's theorem is a special case of the Kelvin–Stokes theorem, when applied to a region in the
xyxy
-plane. Considering only two-dimensional vector fields, Green's theorem is equivalent to the two-dimensional version of the divergence theorem.


Computing area by line integral:

DD
is a simple region with its boundary consisting of the curves
C1C_1
,
C2C_2
,
C3C_3
,
C4C_4
. Green's theorem can be used to compute area by line integral. The area is given by
A=∬DdAA = \iint_{D}\mathrm{d}A
. Provided we choose
LL
and
MM
such that:
∂M∂x−∂L∂y=1\frac{\partial M}{\partial x} - \frac{\partial L}{\partial y} = 1
, then the area is given by
A=∮CxA=\oint_{C} x
. Possible formulas for the area of
DD
include:
A=∮CxdyA=\oint_{C} xdy
,
A=−∮CydxA = -\oint_{C} ydx
, and
A=12∮C(xdy−ydx)A = \frac{1}{2}\oint_{C} (xdy - ydx)
.

Curl and Divergence

The four most important differential operators are gradient, curl, divergence, and Laplacian.

Learning Objectives

Calculate the direction and the magnitude of the curl, and the magnitude of the divergence

Key Takeaways

Key Points

  • The curl is a vector operator that describes the infinitesimal rotation of a three-dimensional vector field.
  • The direction of the curl is the axis of rotation, as determined by the right-hand rule, and the magnitude of the curl is the magnitude of rotation.
  • Divergence is a vector operator that measures the magnitude of a vector field's source or sink at a given point in terms of a signed scalar.


Key Terms

  • gradient: of a function
    y=f(x)y = f(x)
    or the graph of such a function, the rate of change of
    yy
    with respect to
    xx
    ; that is, the amount by which
    yy
    changes for a certain (often unit) change in
    xx


Vector calculus studies various differential operators defined on scalar or vector fields, which are typically expressed in terms of the del operator (
∇\nabla
). The four most important differential operators are gradient (
∇f\nabla f
), curl (
∇×F\nabla \times \mathbf{F}
), divergence (
∇⋅F\nabla \cdot \mathbf{F}
), and Laplacian (
∇2f=∇⋅∇f\nabla^2 f = \nabla \cdot \nabla f
).


Four Most Important Differential Operators: Gradient, curl, divergence, and Laplacian are four most important differential operators.

Curl

The curl is a vector operator that describes the infinitesimal rotation of a 3-dimensional vector field. At every point in the field, the curl of that field is represented by a vector. The attributes of this vector—length and direction—characterize the rotation at that point.

The direction of the curl is the axis of rotation, as determined by the right-hand rule, and the magnitude of the curl is the magnitude of rotation. If the vector field represents the flow velocity of a moving fluid, then the curl is the circulation density of the fluid. A vector field whose curl is zero is called irrotational. The curl is a form of differentiation for vector fields. The corresponding form of the fundamental theorem of calculus is Stokes' theorem, which relates the surface integral of the curl of a vector field to the line integral of the vector field around the boundary curve.

The curl of a vector field
F\mathbf{F}
, denoted by
∇×F\nabla \times \mathbf{F}
, is defined at a point in terms of its projection onto various lines through the point. If
n^\hat{\mathbf{n}}
is any unit vector, the projection of the curl of
F\mathbf{F}
onto
n^\hat{\mathbf{n}}
is defined to be the limiting value of a closed line integral in a plane orthogonal to
n^\hat{\mathbf{n}}
as the path used in the integral becomes infinitesimally close to the point, divided by the area enclosed.

Curl is defined by:

(∇×F)⋅n^=deflim⁡A→0(1∣A∣∮CF⋅dr)\displaystyle{(\nabla \times \mathbf{F}) \cdot \mathbf{\hat{n}} \\ \overset{\underset{\mathrm{def}}{}}{=} \lim_{A \to 0}\left( \frac{1}{|A|}\oint_{C} \mathbf{F} \cdot d\mathbf{r}\right)}


Divergence

Divergence is a vector operator that measures the magnitude of a vector field's source or sink at a given point in terms of a signed scalar. More technically, the divergence represents the volume density of the outward flux of a vector field from an infinitesimal volume around a given point.

In physical terms, the divergence of a three-dimensional vector field is the extent to which the vector field flow behaves like a source or a sink at a given point. It is a local measure of its "outgoingness"—the extent to which there is more exiting an infinitesimal region of space than entering it. If the divergence is nonzero at some point, then there must be a source or sink at that position. (Note that we are imagining the vector field to be like the velocity vector field of a fluid (in motion) when we use the terms flow, sink, and so on.)

More rigorously, the divergence of a vector field
F\mathbf{F}
at a point
pp
is defined as the limit of the net flow of
F\mathbf{F}
across the smooth boundary of a three-dimensional region
VV
divided by the volume of
VV
as
VV
shrinks to
pp
. Formally:

∇⋅F(p)=lim⁡V→{p}∬S(V)F⋅n∣V∣dS\displaystyle{\nabla \cdot \mathbf{F}(p) = \lim_{V \rightarrow \{p\}} \iint_{S(V)} \frac{\mathbf{F}\cdot\mathbf{n}}{\left|V\right| } dS}


where
∣V∣\left|V\right|
is the volume of
VV
,
S(V)S(V)
is the boundary of
VV
, and the integral is a surface integral with n being the outward unit normal to that surface.

Parametric Surfaces and Surface Integrals

A parametric surface is a surface in the Euclidean space
R3R^3
which is defined by a parametric equation.

Learning Objectives

Define the surface integral and identify a parametric surface

Key Takeaways

Key Points

  • Parametric representation is the most general way to specify a surface. The curvature and arc length of curves on the surface can both be computed from a given parametrization.
  • The same surface admits many different parametrizations.
  • A surface integral is a definite integral taken over a surface. It can be thought of as the double integral analog of the line integral.


Key Terms

  • electric potential: the potential energy per unit charge at a point in a static electric field; voltage
  • gradient: of a function
    y=f(x)y = f(x)
    or the graph of such a function, the rate of change of
    yy
    with respect to
    xx
    ; that is, the amount by which
    yy
    changes for a certain (often unit) change in
    xx
  • curl: the vector field denoting the rotationality of a given vector field


Parametric Surface

A parametric surface is a surface in the Euclidean space
R3R^3
which is defined by a parametric equation with two parameters:
r⃗:R2→R3\vec r: \Bbb{R}^2 \rightarrow \Bbb{R}^3
. Parametric representation is the most general way to specify a surface. Surfaces that occur in two of the main theorems of vector calculus, Stokes' theorem and the divergence theorem, are frequently given in a parametric form. The curvature and arc length of curves on the surface can both be computed from a given parametrization.

Examples

  • The simplest type of parametric surfaces is given by the graphs of functions of two variables:
    z=f(x,y)z=f(x,y)
    ;
    r⃗(x,y)=(x,y,f(x,y))\vec{r}(x,y)=(x,y,f(x,y))
    .
  • Using the spherical coordinates, the unit sphere can be parameterized by
    r⃗(θ,ϕ)=(cos⁡θsin⁡ϕ,sin⁡θsin⁡ϕ,cos⁡ϕ),0≤θ<2π,0≤ϕ≤π\vec r(\theta,\phi) = (\cos\theta \sin\phi, \sin\theta \sin \phi, \cos\phi), 0 \leq \theta < 2\pi, 0 \leq \phi \leq \pi
    .
  • The straight circular cylinder of radius
    RR
    about the
    xx
    -axis has the following parametric representation:
    r⃗(x,ϕ)=(x,Rcos⁡ϕ,rsin⁡ϕ)\vec{r}(x,\phi)=(x,R \cos \phi, r \sin \phi)
    .


The same surface admits many different parametrizations. For example, the coordinate
zz
-plane can be parametrized as
r⃗(u,v)=(au+bv,cu+dv,0)\vec r(u,v)=(au+bv,cu+dv, 0)
for any constants
aa
,
bb
,
cc
,
dd
such that
ad−bc≠0ad - bc \neq 0
, i.e. the matrix
[abcd]\begin{bmatrix}a & b\\ c & d\end{bmatrix}
is invertible.

Surface integral

A surface integral is a definite integral taken over a surface. It can be thought of as the double integral analog of the line integral. Given a surface, one may integrate over its scalar fields (that is, functions which return scalars as values), and vector fields (that is, functions which return vectors as values). Surface integrals have many applications in physics, particularly within the classical theory of electromagnetism. We will study surface integral of vector fields and related theorems in the following atoms.


Kelvin-Stokes' Theorem: An illustration of the Kelvin–Stokes theorem, with surface

Σ\Sigma
, its boundary
∂\partial
, and the "normal" vector
n\mathbf{n}
.

Surface Integrals of Vector Fields

The surface integral of vector fields can be defined component-wise according to the definition of the surface integral of a scalar field.

Learning Objectives

Explain relationship between surface integral of vector fields and surface integral of a scalar field

Key Takeaways

Key Points

  • The flux is defined as the quantity of fluid flowing through
    SS
    in unit amount of time.
  • To find the flux, we need to take the dot product of
    v\mathbf{v}
    with the unit surface normal to
    SS
    at each point, which will give us a scalar field, and integrate the obtained field.
  • This is expressed as
    ∫Sv⋅ dS=∫Sv⋅n dS=∬Tv(x(s,t))⋅(∂x∂s×∂x∂t)ds dt\int_S {\mathbf v}\cdot \,d{\mathbf {S}} = \int_S {\mathbf v}\cdot {\mathbf n}\,dS=\iint_T {\mathbf v}(\mathbf{x}(s, t))\cdot \left({\partial \mathbf{x} \over \partial s}\times {\partial \mathbf{x} \over \partial t}\right) ds\, dt
    .


Key Terms

  • vector field: a construction in which each point in a Euclidean space is associated with a vector; a function whose range is a vector space
  • parametrization: Is the process of deciding and defining the parameters necessary for a complete or relevant specification of a model or geometric object.
  • flux: the rate of transfer of energy (or another physical quantity) through a given surface, specifically electric flux, magnetic flux


Consider a vector field
v\mathbf{v}
on
SS
; that is, for each
x\mathbf{x}
in
SS
,
v(x)\mathbf{v}(\mathbf{x})
is a vector. The surface integral of vector fields can be defined component-wise according to the definition of the surface integral of a scalar field; the result is a vector. This applies, for example, in the expression of the electric field at some fixed point due to an electrically charged surface, or the gravity at some fixed point due to a sheet of material.

Alternatively, if we integrate the normal component of the vector field, the result is a scalar. Imagine that we have a fluid flowing through
SS
, such that
v(x)\mathbf{v}(\mathbf{x})
determines the velocity of the fluid at
x\mathbf{x}
. The flux is defined as the quantity of fluid flowing through
SS
in unit amount of time.

This illustration implies that if the vector field is tangent to
SS
 at each point, then the flux is zero, because the fluid just flows in parallel to
SS
, and neither in nor out. This also implies that if
v\mathbf{v}
does not just flow along
SS
—that is, if
v\mathbf{v}
has both a tangential and a normal component—then only the normal component contributes to the flux. Based on this reasoning, to find the flux, we need to take the dot product of
v\mathbf{v}
with the unit surface normal to
SS
, at each point, which will give us a scalar field, and integrate the obtained field as above. We find the formula:

∫Sv⋅ dS=∫Sv⋅n dS=∬Tv(x(s,t))⋅(∂x∂s×∂x∂t)ds dt\displaystyle{\int_S {\mathbf v}\cdot \,d{\mathbf {S}} = \int_S {\mathbf v}\cdot {\mathbf n}\,dS=\iint_T {\mathbf v}(\mathbf{x}(s, t))\cdot \left({\partial \mathbf{x} \over \partial s}\times {\partial \mathbf{x} \over \partial t}\right) ds\, dt}



Kelvin-Stokes' Theorem: An illustration of the Kelvin–Stokes theorem, with surface

Σ\Sigma
, its boundary
∂\partial
, and the "normal" vector
nn
.

The cross product on the right-hand side of this expression is a surface normal determined by the parametrization. This formula defines the integral on the left (note the dot and the vector notation for the surface element).

Example

An electric field from a point charge (
QQ
) is given as:

E=Q4πε0r^∣r∣2\displaystyle{\mathbf{E} = \frac{Q}{4\pi\varepsilon_0} \frac{\mathbf{\hat{r}}}{|\mathbf{r}|^2}}


where
rr
is the position vector and
r^\hat{r}
 is a unit vector in radial direction. If the charge is located at the center of a sphere with a radius
RR
, the surface integral of the electric field over the surface is calculated at the following:

∫SE⋅dS=Q4πε0∫S1∣r∣2dS=Qε0\displaystyle{\int_S {\mathbf{E}} \cdot d\mathbf{S} = \frac{Q}{4\pi\varepsilon_0} \int_S \frac{1}{\left|\mathbf{r}\right|^2} dS = \frac{Q}{\varepsilon_0}}


Stokes' Theorem

Stokes' theorem relates the integral of the curl of a vector field over a surface to the line integral of the field around the boundary.

Learning Objectives

Describe application of Stokes' theorem in electromagnetism

Key Takeaways

Key Points

  • The generalized Stokes' theorem says that the integral of a differential form ω over the boundary of some orientable manifold
    Ω\Omega
    is equal to the integral of its exterior derivative
    dωd \omega
    over the whole of
    Ω\Omega
    .
  • Given a vector field, the Kelvin-Stokes theorem relates the integral of the curl of the vector field over some surface to the line integral of the vector field around the boundary of the surface. The Kelvin–Stokes theorem is a special case of the generalized Stokes' theorem.
  • By applying the Stokes' theorem, you can show that the work done by electric field is path-independent.


Key Terms

  • curl: the vector field denoting the rotationality of a given vector field
  • electric potential: the potential energy per unit charge at a point in a static electric field; voltage
  • gradient: of a function
    y=f(x)y = f(x)
    or the graph of such a function, the rate of change of
    yy
    with respect to
    xx
    ; that is, the amount by which
    yy
    changes for a certain (often unit) change in
    xx


The generalized Stokes' theorem is a statement about the integration of differential forms on manifolds, which both simplifies and generalizes several theorems from vector calculus. Stokes' theorem says that the integral of a differential form
ω\omega
over the boundary of some orientable manifold
Ω\Omega
is equal to the integral of its exterior derivative
dωd\omega
over the whole of
Ω\Omega
, i.e.:

∫∂Ωω=∫Ωdω\displaystyle{\int_{\partial \Omega}\omega=\int_{\Omega}\mathrm {d}\omega}


The Kelvin–Stokes theorem, also known as the curl theorem, is a theorem in vector calculus on
R3R^3
. Given a vector field, the theorem relates the integral of the curl of the vector field over some surface to the line integral of the vector field around the boundary of the surface. The Kelvin–Stokes theorem is a special case of the "generalized Stokes' theorem." If
F\mathbf{F}
is a smooth vector field on
R3R^3
, then:

∮ΓF dΓ=∬S∇×F dS\displaystyle{\oint_{\Gamma} \mathbf{F}\, d\Gamma = \iint_{S} \nabla\times\mathbf{F}\, dS}



Kelvin-Stokes' Theorem: An illustration of the Kelvin–Stokes theorem, with surface

Σ\Sigma
, its boundary
∂\partial
, and the "normal" vector
n\mathbf{n}
.

Application in Electromagnetism

Electric field is a conservative vector field. Therefore, electric field can be written as a gradient of a scalar field:

E=−∇φ\mathbf{E} = - \nabla {\varphi}


Applying the Kelvin-Stokes theorem and substituting in
∮ΓF dΓ=∬S∇×F dS\oint_{\Gamma} \mathbf{F}\, d\Gamma = \iint_{S} \nabla\times\mathbf{F}\, dS
, we get:

∮ΓE dΓ=−∬S∇×(∇φ) dS\displaystyle{\oint_{\Gamma} \mathbf{E}\, d\Gamma = -\iint_{S} \nabla\times (\nabla \varphi) \, dS}


Since
∇×∇f=0\nabla \times \nabla f = 0
 for an arbitrary function
ff
, we derive:

∮ΓE dΓ=0\displaystyle{\oint_{\Gamma} \mathbf{E}\, d\Gamma = 0}


As we have seen in our previous atom on gradient theorem, this simply means:

∫PE⋅dr=φ(B)−φ(A)\displaystyle{\int_P \mathbf{E}\cdot d\mathbf{r}=\varphi(B)-\varphi(A)}


which is equivalent to saying that work done by the electric field only depends on the initial and final point of the motion. The scalar field
φ\varphi
 in the case of electromagnetism is called electric potential.

The Divergence Theorem

The divergence theorem relates the flow of a vector field through a surface to the behavior of the vector field inside the surface.

Learning Objectives

Apply the divergence theorem to evaluate the outward flux of a vector field through a closed surface

Key Takeaways

Key Points

  • The divergence theorem states that the outward flux of a vector field through a closed surface is equal to the volume integral of the divergence over the region inside the surface.
  • In physics and engineering, the divergence theorem is usually applied in three dimensions. However, it generalizes to any number of dimensions.
  • Applying the divergence theorem, we can check that the equation
    ∇⋅E=ρε0\nabla \cdot \mathbf{E} = \frac {\rho} {\varepsilon_0}
    is nothing but an equation describing Coulomb force written in a differential form.


Key Terms

  • flux: the rate of transfer of energy (or another physical quantity) through a given surface, specifically electric flux, magnetic flux
  • divergence: a vector operator that measures the magnitude of a vector field's source or sink at a given point, in terms of a signed scalar


The divergence theorem, also known as Gauss's theorem or Ostrogradsky's theorem, relates the flow (that is, flux) of a vector field through a surface to the behavior of the vector field inside the surface.

More precisely, the divergence theorem states that the outward flux of a vector field through a closed surface is equal to the volume integral of the divergence over the region inside the surface. Intuitively, it states that the sum of all sources minus the sum of all sinks gives the net flow out of a region. The divergence theorem is an important result for the mathematics of engineering, in particular for electrostatics and fluid dynamics.

In physics and engineering, the divergence theorem is usually applied in three dimensions. However, it generalizes to any number of dimensions. In one dimension, it is equivalent to the fundamental theorem of calculus. The theorem is a special case of the generalized Stokes' theorem.

Theorem

Suppose
VV
 is a subset of
RnR^n
 (in the case of
n=3n=3
,
VV
 represents a volume in 3D space) which is compact and has a piecewise smooth boundary
SS
(also indicated with
∂V=S\partial V=S
). If
FF
is a continuously differentiable vector field defined on a neighborhood of
VV
, then we have:

∫∫∫V(∇⋅F)dV=∮S(F⋅n) dS\displaystyle{\int \int \int_V \left(\mathbf{\nabla}\cdot\mathbf{F}\right)dV= \oint_S(\mathbf{F}\cdot\mathbf{n})\,dS}
.

The left side is a volume integral over the volume
VV
; the right side is the surface integral over the boundary of the volume
VV
.


The Divergence Theorem: The divergence theorem can be used to calculate a flux through a closed surface that fully encloses a volume, like any of the surfaces on the left. It can not directly be used to calculate the flux through surfaces with boundaries, like those on the right. (Surfaces are blue, boundaries are red.)

Example

The first equation of the Maxwell's equations is often written as
∇⋅E=ρε0\nabla \cdot \mathbf{E} = \frac {\rho} {\varepsilon_0}
 in a differential form, where
ρ\rho
 is the electric density. Let's consider a system with a point charge
QQ
located at the origin. We will apply the divergence theorem for a sphere of radius
RR
, whose center is also at the origin. Substituting
EE
for
FF
in the relationship of the divergence theorem, the left hand side (LHS) becomes:

∫∫∫V(∇⋅E)dV=∫∫∫V(ρε0)dV=Qε0\displaystyle{\int \int \int_V\left(\mathbf{\nabla}\cdot\mathbf{E}\right)dV = \int \int \int_V \left(\frac{\rho}{\varepsilon_0}\right)dV = \frac{Q}{\varepsilon_0}}


The surface integral on the right hand side (RHS) becomes:

∫S(E⋅n) dS=4πR2E\displaystyle{\int_S(\mathbf{E}\cdot\mathbf{n})\,dS = 4\pi R^2 E}


Combining RHS and LHS, we get:

E=Q4πε0R2\displaystyle{E = \frac{Q}{4\pi \varepsilon_0 R^2}}


This is simply the electric field for the Coulomb force.

Licenses and Attributions

More Study Resources for You

The materials found on Course Hero are not endorsed, affiliated or sponsored by the authors of the above study guide

<b>vector</b> <b>calculus</b> - <b>vector</b> <b>calculus</b> <b>Vector</b> <b>calculus</b> is the study of <b>vector</b> elds and related scalar fun

CALCULUS 3 234534 •  Rutgers Univ

<b>Vector</b> <b>Calculus</b> - University of <b>Vector</b> <b>Calculus</b> <b>Vector</b> Fields Reading Trim 14.1 ! <b>Vector</b> Fields Assi

MATH 259 •  Gonzaga Univ

Topic 3 <b>Vector</b> <b>Calculus</b> Part 2.pdf

MATH CALCULUS •  香港專業教育學院

168643_Vector <b>Calculus</b> pertemuan Pertama.pdf

MATHEMATIC CALCULUS •  Universitas Gadjah Mada

<b>Vector</b> <b>Calculus</b> Linear Algebra_ Matrices, Vectors, Determinants. Linear Systems Line

CALCULUS 3 234534 •  Rutgers Univ

<b>Vector</b>-<b>Calculus</b>-GATE-Study-Material-in-PDF.pdf

MATHEMATIC CALCULUS •  Anna Univ, Chennai

Lecture 13 TOPICS IN <b>VECTOR</b> <b>CALCULUS</b> <b>Vector</b> fields.pptx

MAT 250 •  নর্থ সাউথ ইউনিভার্সিটি

NOTES 07.1 Intro to Parametric &amp; <b>Vector</b> <b>Calculus</b>

MATH 141E •  PSU

BCCALC <b>Vector</b> <b>Calculus</b> Day 1 HW Solutions.pdf

MATH 2414 7003 •  SABS

<b>Vector</b> <b>Calculus</b> Study - [PDF Document].pdf

MATH 259 •  Gonzaga Univ

lecture 12 <b>Vector</b> <b>Calculus</b>

MATHS 2019 •  UNSW

1 <b>Vector</b> <b>Calculus</b> Practice In Mondays class were going to have.docx

MATH CALCULUS •  ঢাকা সিটি কলেজ

FALLSEM2019-20_MAT1011_ETH_VL2019201004338_Reference_Material_I_10-Oct-2019_Vector_Calculus.pdf

MAT 1011 •  Vellore Institute of Technology

0 - <b>VECTOR</b> ALGEBRA, COORDINATE SYSTEM, <b>VECTOR</b> CALCULUS.pdf

ECM 420 •  Universiti Teknologi Mara

<b>Vector</b> <b>Calculus</b>-I.pdf

MAM 2000W •  Univ of Cape Town

<b>Vector</b> Calculus.docx

ENGINEERIN COMP3115 •  Sant Gadge Baba Amravati Univ

10_Vector Calculus.pdf

ENGINEERIN AMEDK3001C •  Uni. Derby

Tutorial 2 - <b>Vector</b> <b>Calculus</b> (1).pdf

ELEE 3240U •  Univ of Ontario Institute of Technology

Notes 3 3317 <b>Vector</b> Calculus.pdf

ECE 3318 •  UH

<b>Vector</b> <b>Calculus</b> - [PDF Document].pdf

CALCULUS 58 •  Rutgers Univ

Ch. 3 <b>Vector</b> <b>Calculus</b> - Examples.pdf

EE 340 •  King Fahd Univ of Petroleum & Minerals

Home_assignment1_Vector calculus.pdf

MATHEMATICS CALCULUS •  NISER

114741339-Multivariable-and-<b>Vector</b>-<b>Calculus</b>-pdf.pdf

MATH 101 •  Baliuag Univ

MATH2118LN-<b>VECTOR</b>-<b>CALCULUS</b>(1).pdf

MATH 2118 •  Royal Melbourne Institute of Technology

LEC 3 <b>Vector</b> <b>calculus</b> review

AERO 339 •  New Mexico State Univ

vector_calculus.pdf

ENGINE •  國立中正大學

Ch1 <b>Vector</b> Calculus.pdf

EECS MISC •  UC Berkeley

<b>Vector</b> calculus.pdf

ENGR 11811 •  Ohio State Univ

<b>Vector</b> <b>Calculus</b> - Part 3.pdf

EEE 2007 •  Nanyang Technological Univ

NTU_EE2007_Vector <b>Calculus</b> - Part 3 (1).pdf

EEE 2007 •  Nanyang Technological Univ

Show More
