Lewis Acids and Bases

Learning Objectives

By the end of this module, you will be able to:

  • Explain the Lewis model of acid-base chemistry
  • Write equations for the formation of adducts and complex ions
  • Perform equilibrium calculations involving formation constants


In 1923, G. N. Lewis proposed a generalized definition of acid-base behavior in which acids and bases are identified by their ability to accept or to donate a pair of electrons and form a coordinate covalent bond.

A coordinate covalent bond (or dative bond) occurs when one of the atoms in the bond provides both bonding electrons. For example, a coordinate covalent bond occurs when a water molecule combines with a hydrogen ion to form a hydronium ion. A coordinate covalent bond also results when an ammonia molecule combines with a hydrogen ion to form an ammonium ion. Both of these equations are shown here.

This figure shows two reactions represented with Lewis structures. The first shows an O atom bonded to two H atoms. The O atom has two lone pairs of electrons. There is a plus sign and then an H atom with a superscript positive sign followed by a right-facing arrow. The next Lewis structure is in brackets and shows an O atom bonded to three H atoms. There is one lone pair of electrons on the O atom. Outside of the brackets is a superscript positive sign. The second reaction shows an N atom bonded to three H atoms. The N atom has one lone pair of electrons. There is a plus sign and then an H superscript positive sign. After the H superscript positive sign is a right-facing arrow. The next Lewis structure is in brackets. It shows an N atom bonded to four H atoms. There is a superscript positive sign outside the brackets. A Lewis acid is any species (molecule or ion) that can accept a pair of electrons, and a Lewis base is any species (molecule or ion) that can donate a pair of electrons.

A Lewis acid-base reaction occurs when a base donates a pair of electrons to an acid. A Lewis acid-base adduct, a compound that contains a coordinate covalent bond between the Lewis acid and the Lewis base, is formed. The following equations illustrate the general application of the Lewis concept.

The boron atom in boron trifluoride, BF3, has only six electrons in its valence shell. Being short of the preferred octet, BF3 is a very good Lewis acid and reacts with many Lewis bases; a fluoride ion is the Lewis base in this reaction, donating one of its lone pairs:

This figure illustrates a chemical reaction using structural formulas. On the left, an F atom is surrounded by four electron dot pairs and has a superscript negative symbol. This structure is labeled below as “Lewis base.” Following a plus sign is another structure which has a B atom at the center and three F atoms single bonded above, right, and below. Each F atom has three pairs of electron dots. This structure is labeled below as “Lewis acid.” Following a right pointing arrow is a structure in brackets that has a central B atom to which 4 F atoms are connected with single bonds above, below, to the left, and to the right. Each F atom in this structure has three pairs of electron dots. Outside the brackets is a superscript negative symbol. This structure is labeled below as “Acid-base adduct.” In the following reaction, each of two ammonia molecules, Lewis bases, donates a pair of electrons to a silver ion, the Lewis acid:

This figure illustrates a chemical reaction using structural formulas. On the left side, a 2 preceeds an N atom which has H atoms single bonded above, to the left, and below. A single electron dot pair is on the right side of the N atom. This structure is labeled below as “Lewis base.” Following a plus sign is an A g atom which has a superscript plus symbol. Following a right pointing arrow is a structure in brackets that has a central A g atom to which N atoms are connected with single bonds to the left and to the right. Each of these N atoms has H atoms bonded above, below, and to the outside of the structure. Outside the brackets is a superscript plus symbol. This structure is labeled below as “Acid-base adduct.” Nonmetal oxides act as Lewis acids and react with oxide ions, Lewis bases, to form oxyanions:

This figure illustrates a chemical reaction using structural formulas. On the left, an O atom is surrounded by four electron dot pairs and has a superscript 2 negative. This structure is labeled below as “Lewis base.” Following a plus sign is another structure which has an S atom at the center. O atoms are single bonded above and below. These O atoms have three electron dot pairs each. To the right of the S atom is a double bonded O atom which has two pairs of electron dots. This structure is labeled below as “Lewis acid.” Following a right pointing arrow is a structure in brackets that has a central S atom to which 4 O atoms are connected with single bonds above, below, to the left, and to the right. Each of the O atoms has three pairs of electron dots. Outside the brackets is a superscript 2 negative. This structure is labeled below as “Acid-base adduct.” Many Lewis acid-base reactions are displacement reactions in which one Lewis base displaces another Lewis base from an acid-base adduct, or in which one Lewis acid displaces another Lewis acid:

This figure shows three chemical reactions in three rows using structural formulas. In the first row, to the left, in brackets is a structure that has a central A g atom to which N atoms are connected with single bonds to the left and to the right. Each of these N atoms has H atoms bonded above, below, and to the outside of the structure. Outside the brackets is a superscript plus symbol. This structure is labeled below as “Acid-base adduct.” Following a plus sign is a 2 and another structure in brackets that shows a C atom triple bonded to an N atom. The C atom has an unshared electron pair on its left side and the N atom has an unshared pair on its right side. Outside the brackets to the right is a superscript negative symbol. This structure is labeled below as “Base.” Following a right pointing arrow is a structure in brackets that has a central A g atom to which 4 FC atoms are connected with single bonds to the left and to the right. At each of the two ends, N atoms are triple bonded to the C atoms. The N atoms each have an unshared electron pair at the end of the structure. Outside the brackets is a superscript negative symbol. This structure is labeled below as “New adduct.” Following a plus sign is an N atom which has H atoms single bonded above, to the left, and below. A single electron dot pair is on the left side of the N atom. This structure is labeled below as “New base.” In the second row, on the left side in brackets is a structure with a central C atom. O atoms, each with three unshared electron pairs, are single bonded above and below and a third O atom, with two unshared electron pairs, is double bonded to the right. Outside the brackets is a superscript 2 negative. This structure is labeled below as “Acid-base adduct.” Following a plus sign is another structure which has an S atom at the center. O atoms are single bonded above and below. These O atoms have three electron dot pairs each. To the right of the S atom is a double bonded O atom which has two pairs of electron dots. This structure is labeled below as “Acid.” Following a right pointing arrow is a structure in brackets that has a central S atom to which 4 O atoms are connected with single bonds above, below, to the left, and to the right. Each of the O atoms has three pairs of electron dots. Outside the brackets is a superscript 2 negative. This structure is labeled below as “New adduct.” The last displacement reaction shows how the reaction of a Brønsted-Lowry acid with a base fits into the Lewis concept. A Brønsted-Lowry acid such as HCl is an acid-base adduct according to the Lewis concept, and proton transfer occurs because a more stable acid-base adduct is formed. Thus, although the definitions of acids and bases in the two theories are quite different, the theories overlap considerably.

Many slightly soluble ionic solids dissolve when the concentration of the metal ion in solution is decreased through the formation of complex (polyatomic) ions in a Lewis acid-base reaction. For example, silver chloride dissolves in a solution of ammonia because the silver ion reacts with ammonia to form the complex ion
Ag(NH3)2+\text{Ag}{\left({\text{NH}}_{3}\right)}_{2}{}^{+}
. The Lewis structure of the
Ag(NH3)2+\text{Ag}{\left({\text{NH}}_{3}\right)}_{2}{}^{+}
ion is:

A structure is shown in brackets. The structure has a central A g atom to which N atoms are single bonded to the left and right. Each of these atoms N atom has H atoms single bonded above, below, and to the outer end of the structure. Outside the brackets is a superscripted plus. The equations for the dissolution of AgCl in a solution of NH3 are:

AgCl(s)Ag+(aq)+Cl(aq)Ag+(aq)+2NH3(aq)Ag(NH3)2+(aq)Net: AgCl(s)+2NH3(aq)Ag(NH3)2+(aq)+Cl(aq)\begin{array}{rrll}{}&\text{AgCl}\left(s\right)&\longrightarrow&{\text{Ag}}^{\text{+}}\left(aq\right)+{\text{Cl}}^{-}\left(aq\right)\\{}&{\text{Ag}}^{\text{+}}\left(aq\right)+2{\text{NH}}_{3}\left(aq\right)&\longrightarrow&\text{Ag}{\left({\text{NH}}_{3}\right)}_{2}{}^{\text{+}}\left(aq\right)\\\text{Net: }&\text{AgCl}\left(s\right)+2{\text{NH}}_{3}\left(aq\right)&\longrightarrow &\text{Ag}{\left({\text{NH}}_{3}\right)}_{2}{}^{\text{+}}\left(aq\right)+{\text{Cl}}^{-}\left(aq\right)\end{array}

Aluminum hydroxide dissolves in a solution of sodium hydroxide or another strong base because of the formation of the complex ion
Al(OH)4\text{Al}{\left(\text{OH}\right)}_{4}{}^{-}
. The Lewis structure of the
Al(OH)4\text{Al}{\left(\text{OH}\right)}_{4}{}^{-}
ion is:

An H atom is bonded to an O atom. The O atom has 2 dots above it and 2 dots below it. The O atom is bonded to an A l atom, which has three additional O atoms bonded to it as well. Each of these additional O atoms has 4 dots arranged around it, and is bonded to an H atom. This entire molecule is contained in brackets, to the right of which is a superscripted negative sign. The equations for the dissolution are:

Al(OH)3(s)Al3+(aq)+3OH(aq)Al3+(aq)+4OH(aq)Al(OH)4(aq)Net:Al(OH)3(s)+OH(aq)Al(OH)4(aq)\begin{array}{rrll}{}&\text{Al}{\left(\text{OH}\right)}_{3}\left(s\right)&\longrightarrow& {\text{Al}}^{\text{3+}}\left(aq\right)+3{\text{OH}}^{-}\left(aq\right)\\{}&{\text{Al}}^{\text{3+}}\left(aq\right)+4{\text{OH}}^{-}\left(aq\right)&\longrightarrow&\text{Al}{\left(\text{OH}\right)}_{4}{}^{-}\left(aq\right)\\\text{Net:}&\text{Al}{\left(\text{OH}\right)}_{3}\left(s\right)+{\text{OH}}^{-}\left(aq\right)&\longrightarrow&\text{Al}{\left(\text{OH}\right)}_{4}{}^{-}\left(aq\right)\end{array}

Mercury(II) sulfide dissolves in a solution of sodium sulfide because HgS reacts with the S2– ion:

HgS(s)Hg2+(aq)+S2(aq)Hg2+(aq)+2S2(aq)HgS22(aq)Net:HgS(s)+S2(aq)HgS22(aq)\begin{array}{rrll}{}&\text{HgS}\left(s\right)&\longrightarrow&{\text{Hg}}^{\text{2+}}\left(aq\right)+{\text{S}}^{2-}\left(aq\right)\\{}&{\text{Hg}}^{\text{2+}}\left(aq\right)+2{\text{S}}^{2-}\left(aq\right)&\longrightarrow&{\text{HgS}}_{2}{}^{2-}\left(aq\right)\\\text{Net:}&\text{HgS}\left(s\right)+{\text{S}}^{2-}\left(aq\right)&\longrightarrow &{\text{HgS}}_{2}{}^{2-}\left(aq\right)\end{array}

A complex ion consists of a central atom, typically a transition metal cation, surrounded by ions, or molecules called ligands. These ligands can be neutral molecules like H2O or NH3, or ions such as CN or OH. Often, the ligands act as Lewis bases, donating a pair of electrons to the central atom. The ligands aggregate themselves around the central atom, creating a new ion with a charge equal to the sum of the charges and, most often, a transitional metal ion. This more complex arrangement is why the resulting ion is called a complex ion. The complex ion formed in these reactions cannot be predicted; it must be determined experimentally. The types of bonds formed in complex ions are called coordinate covalent bonds, as electrons from the ligands are being shared with the central atom. Because of this, complex ions are sometimes referred to as coordination complexes. This will be studied further in upcoming chapters.

The equilibrium constant for the reaction of the components of a complex ion to form the complex ion in solution is called a formation constant (Kf) (sometimes called a stability constant). For example, the complex ion
Cu(CN)2\text{Cu}{\left(\text{CN}\right)}_{2}{}^{-}
is shown here:

A Cu atom is bonded to two C atoms. Each of these C atoms is triple bonded to an N atom. Each N atom has two dots on the side of it. It forms by the reaction:

Cu+(aq)+2CN(aq)Cu(CN)2(aq){\text{Cu}}^{\text{+}}\left(aq\right)+2{\text{CN}}^{-}\left(aq\right)\rightleftharpoons \text{Cu}{\left(\text{CN}\right)}_{2}{}^{-}\left(aq\right)

At equilibrium:

Kf=Q=[Cu(CN)2][Cu+][CN]2{K}_{\text{f}}=Q=\frac{\left[\text{Cu}{\left(\text{CN}\right)}_{2}{}^{-}\right]}{\left[{\text{Cu}}^{+}\right]{\left[{\text{CN}}^{-}\right]}^{2}}

The inverse of the formation constant is the dissociation constant (Kd), the equilibrium constant for the decomposition of a complex ion into its components in solution. We will work with dissociation constants further in the exercises for this section. Formation Constants for Complex Ions and Table 1 are tables of formation constants. In general, the larger the formation constant, the more stable the complex; however, as in the case of Ksp values, the stoichiometry of the compound must be considered.

Table 1. Common Complex Ions by Decreasing Formulation Constants
Substance Kf at 25 °C
[Cd(CN)4]2{\left[\text{Cd}{\left(\text{CN}\right)}_{4}\right]}^{2-}
1.3
×\times
107
Ag(NH3)2+\text{Ag}{\left({\text{NH}}_{3}\right)}_{2}{}^{+}
1.7
×\times
107
[AlF6]3-{\left[{\text{AlF}}_{6}\right]}^{\text{3-}}
7
×\times
1019
As an example of dissolution by complex ion formation, let us consider what happens when we add aqueous ammonia to a mixture of silver chloride and water. Silver chloride dissolves slightly in water, giving a small concentration of Ag+ ([Ag+] = 1.3
×\times
10–5 M):

AgCl(s)Ag+(aq)+Cl(aq)\text{AgCl}\left(s\right)\rightleftharpoons {\text{Ag}}^{\text{+}}\left(aq\right)+{\text{Cl}}^{-}\left(aq\right)

However, if NH3 is present in the water, the complex ion,
Ag(NH3)2+\text{Ag}{\left({\text{NH}}_{3}\right)}_{2}{}^{+}
, can form according to the equation:

Ag+(aq)+2NH3(aq)Ag(NH3)2+(aq){\text{Ag}}^{\text{+}}\left(aq\right)+2{\text{NH}}_{3}\left(aq\right)\rightleftharpoons \text{Ag}{\left({\text{NH}}_{3}\right)}_{2}{}^{\text{+}}\left(aq\right)

with

Kf=[Ag(NH3)2+][Ag+][NH3]2=1.6×107{K}_{\text{f}}=\frac{\left[\text{Ag}{\left({\text{NH}}_{3}\right)}_{2}{}^{+}\right]}{\left[{\text{Ag}}^{+}\right]{\left[{\text{NH}}_{3}\right]}^{2}}=1.6\times {10}^{7}

The large size of this formation constant indicates that most of the free silver ions produced by the dissolution of AgCl combine with NH3 to form
Ag(NH3)2+\text{Ag}{\left({\text{NH}}_{3}\right)}_{2}{}^{+}
. As a consequence, the concentration of silver ions, [Ag+], is reduced, and the reaction quotient for the dissolution of silver chloride, [Ag+][Cl], falls below the solubility product of AgCl:

Q=[Ag+][Cl]<KspQ=\left[{\text{Ag}}^{+}\right]\left[{\text{Cl}}^{-}\right]<{K}_{\text{sp}}

More silver chloride then dissolves. If the concentration of ammonia is great enough, all of the silver chloride dissolves.

Example 1: Dissociation of a Complex Ion

Calculate the concentration of the silver ion in a solution that initially is 0.10 M with respect to
Ag(NH3)2+\text{Ag}{\left({\text{NH}}_{3}\right)}_{2}{}^{+}
.





Check Your Learning

Calculate the silver ion concentration, [Ag+], of a solution prepared by dissolving 1.00 g of AgNO3 and 10.0 g of KCN in sufficient water to make 1.00 L of solution. (Hint: Because Q < Kf, assume the reaction goes to completion then calculate the [Ag+] produced by dissociation of the complex.)





Key Takeaways

G.N. Lewis proposed a definition for acids and bases that relies on an atom’s or molecule’s ability to accept or donate electron pairs. A Lewis acid is a species that can accept an electron pair, whereas a Lewis base has an electron pair available for donation to a Lewis acid. Complex ions are examples of Lewis acid-base adducts. In a complex ion, we have a central atom, often consisting of a transition metal cation, which acts as a Lewis acid, and several neutral molecules or ions surrounding them called ligands that act as Lewis bases. Complex ions form by sharing electron pairs to form coordinate covalent bonds. The equilibrium reaction that occurs when forming a complex ion has an equilibrium constant associated with it called a formation constant, Kf. This is often referred to as a stability constant, as it represents the stability of the complex ion. Formation of complex ions in solution can have a profound effect on the solubility of a transition metal compound.

Exercises

  1. Under what circumstances, if any, does a sample of solid AgCl completely dissolve in pure water?
  2. Explain why the addition of NH3 or HNO3 to a saturated solution of Ag2CO3 in contact with solid Ag2CO3 increases the solubility of the solid.
  3. Calculate the cadmium ion concentration, [Cd2+], in a solution prepared by mixing 0.100 L of 0.0100 M Cd(NO3)2 with 1.150 L of 0.100 NH3(aq).
  4. Explain why addition of NH3 or HNO3 to a saturated solution of Cu(OH)2 in contact with solid Cu(OH)2 increases the solubility of the solid.
  5. Sometimes equilibria for complex ions are described in terms of dissociation constants, Kd. For the complex ion
    AlF63-{\text{AlF}}_{6}{}^{\text{3-}}
    the dissociation reaction is:
    AlF63Al3++6F{\text{AlF}}_{6}^{3-}\rightleftharpoons {\text{Al}}^{\text{3+}}+6{\text{F}}^{-}
     and
    Kd=[Al3+][F]6[AlF63]=2×1024{K}_{\text{d}}=\frac{\left[{\text{Al}}^{\text{3+}}\right]{\left[{\text{F}}^{-}\right]}^{6}}{\left[{\text{AlF}}_{6}^{3-}\right]}=2\times {10}^{-24}
    Calculate the value of the formation constant, Kf, for
    AlF63{\text{AlF}}_{\text{6}}^{\text{3}-}
    .
  6. Using the value of the formation constant for the complex ion
    Co(NH3)62+\text{Co}{\left({\text{NH}}_{3}\right)}_{6}{}^{\text{2+}}
    , calculate the dissociation constant.
  7. Using the dissociation constant, Kd = 7.8
    ×\times
    10–18, calculate the equilibrium concentrations of Cd2+ and CN in a 0.250-M solution of
    Cd(CN)42\text{Cd}{\left(\text{CN}\right)}_{4}^{2-}
    .
  8. Using the dissociation constant, Kd = 3.4
    ×\times
    10–15, calculate the equilibrium concentrations of Zn2+ and OH in a 0.0465-M solution of
    Zn(OH)42\text{Zn}{\left(\text{OH}\right)}_{4}^{2-}
    .
  9. Using the dissociation constant, Kd = 2.2
    ×\times
    10–34, calculate the equilibrium concentrations of Co3+ and NH3 in a 0.500-M solution of
    Co(NH3)63+\text{Co}{\left({\text{NH}}_{3}\right)}_{6}^{\text{3+}}
    .
  10. Using the dissociation constant, Kd = 1
    ×\times
    10–44, calculate the equilibrium concentrations of Fe3+ and CN in a 0.333 M solution of
    Fe(CN)63\text{Fe}{\left(\text{CN}\right)}_{6}^{3-}
    .
  11. Calculate the mass of potassium cyanide ion that must be added to 100 mL of solution to dissolve 2.0
    ×\times
    10–2 mol of silver cyanide, AgCN.
  12. Calculate the minimum concentration of ammonia needed in 1.0 L of solution to dissolve 3.0
    ×\times
    10–3 mol of silver bromide.
  13. A roll of 35-mm black and white photographic film contains about 0.27 g of unexposed AgBr before developing. What mass of Na2S2O3.5H2O (sodium thiosulfate pentahydrate or hypo) in 1.0 L of developer is required to dissolve the AgBr as
    Ag(S2O3)23-\text{Ag}{\left({\text{S}}_{2}{\text{O}}_{3}\right)}_{2}{}^{\text{3-}}
    (Kf = 4.7
    ×\times
    1013)?
  14. We have seen an introductory definition of an acid: An acid is a compound that reacts with water and increases the amount of hydronium ion present. In the chapter on acids and bases, we saw two more definitions of acids: a compound that donates a proton (a hydrogen ion, H+) to another compound is called a Brønsted-Lowry acid, and a Lewis acid is any species that can accept a pair of electrons. Explain why the introductory definition is a macroscopic definition, while the Brønsted-Lowry definition and the Lewis definition are microscopic definitions.
  15. Write the Lewis structures of the reactants and product of each of the following equations, and identify the Lewis acid and the Lewis base in each:

    1. CO2+OHHCO3{\text{CO}}_{2}+{\text{OH}}^{-}\longrightarrow {\text{HCO}}_{3}{}^{-}
    2. B(OH)3+OHB(OH)4\text{B}{\left(\text{OH}\right)}_{3}+{\text{OH}}^{-}\longrightarrow \text{B}{\left(\text{OH}\right)}_{4}{}^{-}
    3. I+I2I3{\text{I}}^{-}+{\text{I}}_{2}\longrightarrow {\text{I}}_{3}{}^{-}

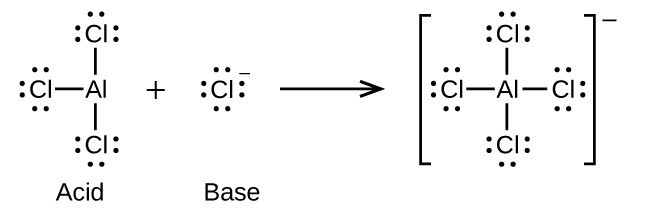

    4. AlCl3+ClAlCl4{\text{AlCl}}_{3}+{\text{Cl}}^{-}\longrightarrow {\text{AlCl}}_{4}{}^{-}
      (use Al-Cl single bonds)
    5. O2+SO3SO42{\text{O}}^{2-}+{\text{SO}}_{3}\longrightarrow {\text{SO}}_{4}{}^{2-}


  16. Write the Lewis structures of the reactants and product of each of the following equations, and identify the Lewis acid and the Lewis base in each:

    1. CS2+SHHCS3{\text{CS}}_{2}+{\text{SH}}^{-}\longrightarrow {\text{HCS}}_{3}{}^{-}
    2. BF3+FBF4{\text{BF}}_{3}+{\text{F}}^{-}\longrightarrow {\text{BF}}_{4}{}^{-}
    3. I+SnI2SnI3{\text{I}}^{-}+{\text{SnI}}_{2}\longrightarrow {\text{SnI}}_{3}{}^{-}
    4. Al(OH)3+OHAl(OH)4\text{Al}{\left(\text{OH}\right)}_{3}+{\text{OH}}^{-}\longrightarrow \text{Al}{\left(\text{OH}\right)}_{4}{}^{-}
    5. F+SO3SFO3{\text{F}}^{-}+{\text{SO}}_{3}\longrightarrow {\text{SFO}}_{3}{}^{-}


  17. Using Lewis structures, write balanced equations for the following reactions:

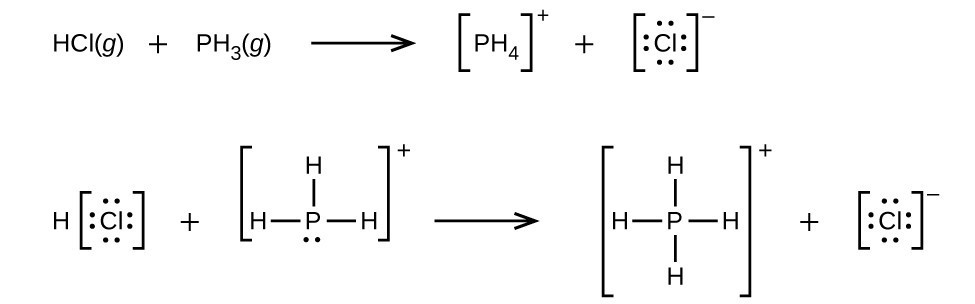

    1. HCl(g)+PH3(g)\text{HCl}\left(g\right)+{\text{PH}}_{3}\left(g\right)\longrightarrow
    2. H3O++CH3{\text{H}}_{3}{\text{O}}^{+}+{\text{CH}}_{3}{}^{-}\longrightarrow
    3. CaO+SO3\text{CaO}+{\text{SO}}_{3}\longrightarrow
    4. NH4++C2H5O{\text{NH}}_{4}{}^{+}+{\text{C}}_{2}{\text{H}}_{5}{\text{O}}^{-}\longrightarrow


  18. Calculate
    [HgCl42]\left[{\text{HgCl}}_{4}{}^{2-}\right]
    in a solution prepared by adding 0.0200 mol of NaCl to 0.250 L of a 0.100-M HgCl2 solution.
  19. In a titration of cyanide ion, 28.72 mL of 0.0100 M AgNO3 is added before precipitation begins. [The reaction of Ag+ with CN goes to completion, producing the
    Ag(CN)2\text{Ag}{\left(\text{CN}\right)}_{2}{}^{-}
    complex.] Precipitation of solid AgCN takes place when excess Ag+ is added to the solution, above the amount needed to complete the formation of
    Ag(CN)2\text{Ag}{\left(\text{CN}\right)}_{2}{}^{-}
    . How many grams of NaCN were in the original sample?
  20. What are the concentrations of Ag+, CN, and
    Ag(CN)2\text{Ag}{\left(\text{CN}\right)}_{2}{}^{-}
    in a saturated solution of AgCN?
  21. In dilute aqueous solution HF acts as a weak acid. However, pure liquid HF (boiling point = 19.5 °C) is a strong acid. In liquid HF, HNO3 acts like a base and accepts protons. The acidity of liquid HF can be increased by adding one of several inorganic fluorides that are Lewis acids and accept F ion (for example, BF3 or SbF5). Write balanced chemical equations for the reaction of pure HNO3 with pure HF and of pure HF with BF3. Write the Lewis structures of the reactants and products, and identify the conjugate acid-base pairs.
  22. The simplest amino acid is glycine, H2NCH2CO2H. The common feature of amino acids is that they contain the functional groups: an amine group, –NH2, and a carboxylic acid group, –CO2H. An amino acid can function as either an acid or a base. For glycine, the acid strength of the carboxyl group is about the same as that of acetic acid, CH3CO2H, and the base strength of the amino group is slightly greater than that of ammonia, NH3.

    1. Write the Lewis structures of the ions that form when glycine is dissolved in 1 M HCl and in 1 M KOH.
    2. Write the Lewis structure of glycine when this amino acid is dissolved in water. (Hint: Consider the relative base strengths of the –NH2 and
      CO2-{\text{CO}}_{2}{}^{-}
      groups.)


  23. Boric acid, H3BO3, is not a Brønsted-Lowry acid but a Lewis acid.

    1. Write an equation for its reaction with water.
    2. Predict the shape of the anion thus formed.
    3. What is the hybridization on the boron consistent with the shape you have predicted?








Glossary

complex ion: ion consisting of a transition metal central atom and surrounding molecules or ions called ligands

dissociation constant: (Kd) equilibrium constant for the decomposition of a complex ion into its components in solution

formation constant: (Kf) (also, stability constant) equilibrium constant for the formation of a complex ion from its components in solution

Lewis acid: any species that can accept a pair of electrons and form a coordinate covalent bond

Lewis acid-base adduct: compound or ion that contains a coordinate covalent bond between a Lewis acid and a Lewis base

Lewis base: any species that can donate a pair of electrons and form a coordinate covalent bond

ligand: molecule or ion that surrounds a transition metal and forms a complex ion; ligands act as Lewis bases
