By the end of this section, you will be able to:
- Describe multiple covalent bonding in terms of atomic orbital overlap
- Relate the concept of resonance to π-bonding and electron delocalization
The hybrid orbital model appears to account well for the geometry of molecules involving single covalent bonds. Is it also capable of describing molecules containing double and triple bonds? We have already discussed that multiple bonds consist of σ and π bonds. Next we can consider how we visualize these components and how they relate to hybrid orbitals. The Lewis structure of ethene, C2
, shows us that each carbon atom is surrounded by one other carbon atom and two hydrogen atoms.
The three bonding regions form a trigonal planar electron-pair geometry. Thus we expect the σ bonds from each carbon atom are formed using a set of sp2
hybrid orbitals that result from hybridization of two of the 2p
orbitals and the 2s
orbital (Figure 1).
Figure 1. In ethene, each carbon atom is sp2
hybridized, and the sp2
orbitals and the p
orbital are singly occupied. The hybrid orbitals overlap to form σ bonds, while the p
orbitals on each carbon atom overlap to form a π bond.
These orbitals form the C–H single bonds and the σ bond in the
double bond (Figure 2).
The π bond in the
double bond results from the overlap of the third (remaining) 2p
orbital on each carbon atom that is not involved in hybridization. This unhybridized p
orbital (shown in red in Figure 2) is perpendicular to the plane of the sp2
hybrid orbitals. Thus the unhybridized 2p
orbitals overlap in a side-by-side fashion, above and below the internuclear axis (Figure 2) and form a π bond.
Figure 2. In the ethene molecule, C2
, there are (a) five σ bonds shown in purple. One C–C σ bond results from overlap of sp2
hybrid orbitals on the carbon atom with one sp2
hybrid orbital on the other carbon atom. Four C–H bonds result from the overlap between the sp2
orbitals with s
orbitals on the hydrogen atoms. (b) The π bond is formed by the side-by-side overlap of the two unhybridized p
orbitals in the two carbon atoms, which are shown in red. The two lobes of the π bond are above and below the plane of the σ system.
In an ethene molecule, the four hydrogen atoms and the two carbon atoms are all in the same plane. If the two planes of sp2
hybrid orbitals tilted relative to each other, the p
orbitals would not be oriented to overlap efficiently to create the π bond. The planar configuration for the ethene molecule occurs because it is the most stable bonding arrangement. This is a significant difference between σ and π bonds; rotation around single (σ) bonds occurs easily because the end-to-end orbital overlap does not depend on the relative orientation of the orbitals on each atom in the bond. In other words, rotation around the internuclear axis does not change the extent to which the σ bonding orbitals overlap because the bonding electron density is symmetric about the axis. Rotation about the internuclear axis is much more difficult for multiple bonds; however, this would drastically alter the off-axis overlap of the π bonding orbitals, essentially breaking the π bond.
In molecules with sp
hybrid orbitals, two unhybridized p
orbitals remain on the atom (Figure 3). We find this situation in acetylene,
which is a linear molecule.
Figure 3. Diagram of the two linear sp
hybrid orbitals of a carbon atom, which lie in a straight line, and the two unhybridized p
orbitals at perpendicular angles.
hybrid orbitals of the two carbon atoms overlap end to end to form a σ bond between the carbon atoms (Figure 4). The remaining sp
orbitals form σ bonds with hydrogen atoms. The two unhybridized p
orbitals per carbon are positioned such that they overlap side by side and, hence, form two π bonds. The two carbon atoms of acetylene are thus bound together by one σ bond and two π bonds, giving a triple bond.

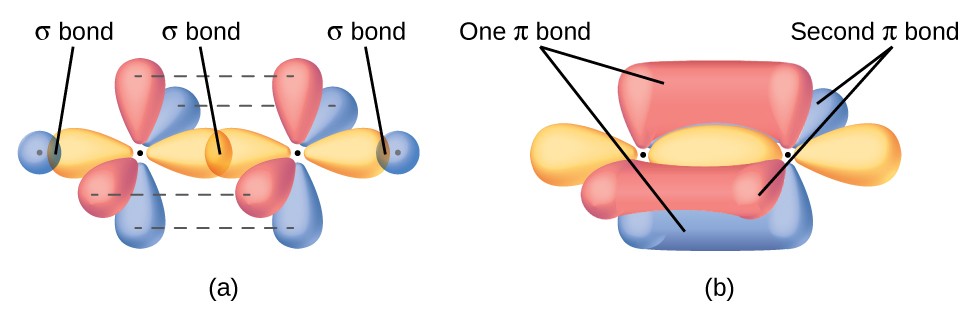

Figure 4. (a) In the acetylene molecule, C2
, there are two C–H σ bonds and a C ≡ C triple bond involving one C–C σ bond and two C–C π bonds. The dashed lines, each connecting two lobes, indicate the side-by-side overlap of the four unhybridized p orbitals. (b) This shows the overall outline of the bonds in C2
. The two lobes of each of the π bonds are positioned across from each other around the line of the C–C σ bond.
Hybridization involves only σ bonds, lone pairs of electrons, and single unpaired electrons (radicals). Structures that account for these features describe the correct hybridization of the atoms. However, many structures also include resonance forms. Remember that resonance forms occur when various arrangements of π bonds are possible. Since the arrangement of π bonds involves only the unhybridized orbitals, resonance does not influence the assignment of hybridization.
For example, molecule benzene has two resonance forms (Figure 5). We can use either of these forms to determine that each of the carbon atoms is bonded to three other atoms with no lone pairs, so the correct hybridization is sp2
. The electrons in the unhybridized p
orbitals form π bonds. Neither resonance structure completely describes the electrons in the π bonds. They are not located in one position or the other, but in reality are delocalized throughout the ring. Valence bond theory does not easily address delocalization. Bonding in molecules with resonance forms is better described by molecular orbital theory.
Figure 5. Each carbon atom in benzene, C6
, is sp2
hybridized, independently of which resonance form is considered. The electrons in the π bonds are not located in one set of p orbitals or the other, but rather delocalized throughout the molecule.
Example 1: Assignment of Hybridization Involving Resonance
Some acid rain results from the reaction of sulfur dioxide with atmospheric water vapor, followed by the formation of sulfuric acid. Sulfur dioxide, SO2
, is a major component of volcanic gases as well as a product of the combustion of sulfur-containing coal. What is the hybridization of the S atom in SO2
Check Your Learning
Another acid in acid rain is nitric acid, HNO3
, which is produced by the reaction of nitrogen dioxide, NO2
, with atmospheric water vapor. What is the hybridization of the nitrogen atom in NO2
? (Note: the lone electron on nitrogen occupies a hybridized orbital just as a lone pair would.)
Key Concepts and Summary
Multiple bonds consist of a σ bond located along the axis between two atoms and one or two π bonds. The σ bonds are usually formed by the overlap of hybridized atomic orbitals, while the π bonds are formed by the side-by-side overlap of unhybridized orbitals. Resonance occurs when there are multiple unhybridized orbitals with the appropriate alignment to overlap, so the placement of π bonds can vary.
- The bond energy of a C–C single bond averages 347 kJ mol-1; that of a
triple bond averages 839 kJ mol-1. Explain why the triple bond is not three times as strong as a single bond.
- For the carbonate ion,
draw all of the resonance structures. Identify which orbitals overlap to create each bond.
- A useful solvent that will dissolve salts as well as organic compounds is the compound acetonitrile, H3CCN. It is present in paint strippers.
- Write the Lewis structure for acetonitrile, and indicate the direction of the dipole moment in the molecule.
- Identify the hybrid orbitals used by the carbon atoms in the molecule to form σ bonds.
- Describe the atomic orbitals that form the π bonds in the molecule. Note that it is not necessary to hybridize the nitrogen atom.
- For the molecule allene,
give the hybridization of each carbon atom. Will the hydrogen atoms be in the same plane or perpendicular planes?
- Identify the hybridization of the central atom in each of the following molecules and ions that contain multiple bonds:
- ClNO (N is the central atom)
- Cl2CO (C is the central atom)
- Cl2SO (S is the central atom)
- SO2F2 (S is the central atom)
- XeO2F2 (Xe is the central atom)
(Cl is the central atom)
- Describe the molecular geometry and hybridization of the N, P, or S atoms in each of the following compounds. (a) H3PO4, phosphoric acid, used in cola soft drinks (b) NH4NO3, ammonium nitrate, a fertilizer and explosive (c) S2Cl2, disulfur dichloride, used in vulcanizing rubber (d) K4[O3POPO3], potassium pyrophosphate, an ingredient in some toothpastes
- For each of the following molecules, indicate the hybridization requested and whether or not the electrons will be delocalized:
- ozone (O3) central O hybridization
- carbon dioxide (CO2) central C hybridization
- nitrogen dioxide (NO2) central N hybridization
- phosphate ion
central P hybridization
- For each of the following structures, determine the hybridization requested and whether the electrons will be delocalized:
- Hybridization of each carbon
- Hybridization of sulfur
- All atoms
- Draw the orbital diagram for carbon in CO2 showing how many carbon atom electrons are in each orbital.
Show Selected Answers
