Determine whether a relation represents a function

A relation is a set of ordered pairs. The set of the first components of each ordered pair is called the domain and the set of the second components of each ordered pair is called the range. Consider the following set of ordered pairs. The first numbers in each pair are the first five natural numbers. The second number in each pair is twice that of the first.

{(1,2),(2,4),(3,6),(4,8),(5,10)}\left\{\left(1,2\right),\left(2,4\right),\left(3,6\right),\left(4,8\right),\left(5,10\right)\right\}

The domain is

{1,2,3,4,5}\left\{1,2,3,4,5\right\}
. The range is
{2,4,6,8,10}\left\{2,4,6,8,10\right\}
.

Note that each value in the domain is also known as an input value, or independent variable, and is often labeled with the lowercase letter

xx
. Each value in the range is also known as an output value, or dependent variable, and is often labeled lowercase letter
yy
.

A function

ff
is a relation that assigns a single value in the range to each value in the domain. In other words, no x-values are repeated. For our example that relates the first five natural numbers to numbers double their values, this relation is a function because each element in the domain,
{1,2,3,4,5}\left\{1,2,3,4,5\right\}
, is paired with exactly one element in the range,
{2,4,6,8,10}\left\{2,4,6,8,10\right\}
.

Now let’s consider the set of ordered pairs that relates the terms "even" and "odd" to the first five natural numbers. It would appear as

{(odd,1),(even,2),(odd,3),(even,4),(odd,5)}\left\{\left(\text{odd},1\right),\left(\text{even},2\right),\left(\text{odd},3\right),\left(\text{even},4\right),\left(\text{odd},5\right)\right\}

Notice that each element in the domain,

{even,odd}\left\{\text{even,}\text{odd}\right\}
 is not paired with exactly one element in the range,
{1,2,3,4,5}\left\{1,2,3,4,5\right\}
. For example, the term "odd" corresponds to three values from the domain,
{1,3,5}\left\{1,3,5\right\}
 and the term "even" corresponds to two values from the range,
{2,4}\left\{2,4\right\}
. This violates the definition of a function, so this relation is not a function.

Figure 1 compares relations that are functions and not functions.

Three relations that demonstrate what constitute a function.Figure 1. (a) This relationship is a function because each input is associated with a single output. Note that input
qq
and
rr
both give output
nn
. (b) This relationship is also a function. In this case, each input is associated with a single output. (c) This relationship is not a function because input
qq
is associated with two different outputs.


A General Note: Function

A function is a relation in which each possible input value leads to exactly one output value. We say "the output is a function of the input."

The input values make up the domain, and the output values make up the range.

How To: Given a relationship between two quantities, determine whether the relationship is a function.

  1. Identify the input values.
  2. Identify the output values.
  3. If each input value leads to only one output value, classify the relationship as a function. If any input value leads to two or more outputs, do not classify the relationship as a function.

Example 1: Determining If Menu Price Lists Are Functions

The coffee shop menu, shown in Figure 2 consists of items and their prices.

  1. Is price a function of the item?
  2. Is the item a function of the price?

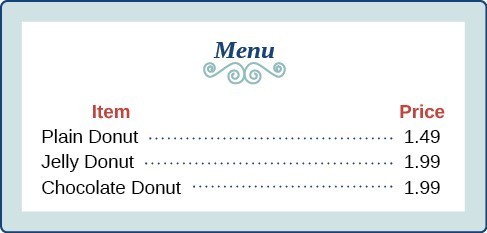

A menu of donut prices from a coffee shop where a plain donut is $1.49 and a jelly donut and chocolate donut are $1.99.Figure 2


Solution

  1. Let’s begin by considering the input as the items on the menu. The output values are then the prices. See Figure 2.

    A menu of donut prices from a coffee shop where a plain donut is $1.49 and a jelly donut and chocolate donut are $1.99.Figure 2


    Each item on the menu has only one price, so the price is a function of the item.

  2. Two items on the menu have the same price. If we consider the prices to be the input values and the items to be the output, then the same input value could have more than one output associated with it. See Figure 3.

    Association of the prices to the donuts.Figure 3


    Therefore, the item is a not a function of price.

Example 2: Determining If Class Grade Rules Are Functions

In a particular math class, the overall percent grade corresponds to a grade point average. Is grade point average a function of the percent grade? Is the percent grade a function of the grade point average? The table below shows a possible rule for assigning grade points.

Percent Grade 0–56 57–61 62–66 67–71 72–77 78–86 87–91 92–100
Grade Point Average 0.0 1.0 1.5 2.0 2.5 3.0 3.5 4.0

Solution

For any percent grade earned, there is an associated grade point average, so the grade point average is a function of the percent grade. In other words, if we input the percent grade, the output is a specific grade point average.

In the grading system given, there is a range of percent grades that correspond to the same grade point average. For example, students who receive a grade point average of 3.0 could have a variety of percent grades ranging from 78 all the way to 86. Thus, percent grade is not a function of grade point average.



Try It 1

The table below lists the five greatest baseball players of all time in order of rank.

Player Rank
Babe Ruth 1
Willie Mays 2
Ty Cobb 3
Walter Johnson 4
Hank Aaron 5
a) Is the rank a function of the player name?
b) Is the player name a function of the rank?
Solution

Using Function Notation

Once we determine that a relationship is a function, we need to display and define the functional relationships so that we can understand and use them, and sometimes also so that we can program them into computers. There are various ways of representing functions. A standard function notation is one representation that facilitates working with functions.

To represent "height is a function of age," we start by identifying the descriptive variables

hh
 for height and
aa
 for age. The letters
f,gf,g
, and
hh
are often used to represent functions just as we use
x,yx,y
, and
zz
to represent numbers and
A,BA,B
, and
CC
to represent sets.

{h is f of aWe name the function f; height is a function of age.h=f(a)We use parentheses to indicate the function input. f(a)We name the function f; the expression is read as "f of a."\begin{cases}h\text{ is }f\text{ of }a\qquad & \qquad & \qquad & \qquad & \text{We name the function }f;\text{ height is a function of age}.\qquad \\ h=f\left(a\right)\qquad & \qquad & \qquad & \qquad & \text{We use parentheses to indicate the function input}\text{. }\qquad \\ f\left(a\right)\qquad & \qquad & \qquad & \qquad & \text{We name the function }f;\text{ the expression is read as "}f\text{ of }a\text{."}\qquad \end{cases}

Remember, we can use any letter to name the function; the notation

h(a)h\left(a\right)
shows us that
hh
depends on
aa
. The value
aa
must be put into the function
hh
to get a result. The parentheses indicate that age is input into the function; they do not indicate multiplication.

We can also give an algebraic expression as the input to a function. For example

f(a+b)f\left(a+b\right)
means "first add a and b, and the result is the input for the function f." The operations must be performed in this order to obtain the correct result.

A General Note: Function Notation

The notation

y=f(x)y=f\left(x\right)
defines a function named
ff
. This is read as
"y"y
is a function of
x."x."
The letter
xx
represents the input value, or independent variable. The letter
y,y\text{,}{\hspace{0.17em}}
or
f(x)f\left(x\right)
, represents the output value, or dependent variable.

Example 3: Using Function Notation for Days in a Month

Use function notation to represent a function whose input is the name of a month and output is the number of days in that month.

Solution

The number of days in a month is a function of the name of the month, so if we name the function
ff
, we write
days=f(month)\text{days}=f\left(\text{month}\right)
 or
d=f(m)d=f\left(m\right)
. The name of the month is the input to a "rule" that associates a specific number (the output) with each input.

The function 31 = f(January) where 31 is the output, f is the rule, and January is the input.Figure 4


For example,

f(March)=31f\left(\text{March}\right)=31
, because March has 31 days. The notation
d=f(m)d=f\left(m\right)
reminds us that the number of days,
dd
(the output), is dependent on the name of the month,
mm
(the input).

Analysis of the Solution

Note that the inputs to a function do not have to be numbers; function inputs can be names of people, labels of geometric objects, or any other element that determines some kind of output. However, most of the functions we will work with in this book will have numbers as inputs and outputs.

Example 4: Interpreting Function Notation

A function

N=f(y)N=f\left(y\right)
gives the number of police officers,
NN
, in a town in year
yy
. What does
f(2005)=300f\left(2005\right)=300
represent?

Solution

When we read

f(2005)=300f\left(2005\right)=300
, we see that the input year is 2005. The value for the output, the number of police officers
(N)\left(N\right)
, is 300. Remember,
N=f(y)N=f\left(y\right)
. The statement
f(2005)=300f\left(2005\right)=300
tells us that in the year 2005 there were 300 police officers in the town.

Q & A

Instead of a notation such as

y=f(x)y=f\left(x\right)
, could we use the same symbol for the output as for the function, such as
y=y(x)y=y\left(x\right)
, meaning "y is a function of x?"

Yes, this is often done, especially in applied subjects that use higher math, such as physics and engineering. However, in exploring math itself we like to maintain a distinction between a function such as

ff
, which is a rule or procedure, and the output
yy
we get by applying
ff
to a particular input
xx
. This is why we usually use notation such as
y=f(x),P=W(d)y=f\left(x\right),P=W\left(d\right)
, and so on.

Representing Functions Using Tables

A common method of representing functions is in the form of a table. The table rows or columns display the corresponding input and output values. In some cases, these values represent all we know about the relationship; other times, the table provides a few select examples from a more complete relationship.

The table below lists the input number of each month (January = 1, February = 2, and so on) and the output value of the number of days in that month. This information represents all we know about the months and days for a given year (that is not a leap year). Note that, in this table, we define a days-in-a-month function

ff
where
D=f(m)D=f\left(m\right)
identifies months by an integer rather than by name.

Month number,
mm
(input)
1 2 3 4 5 6 7 8 9 10 11 12
Days in month,
DD
(output)
31 28 31 30 31 30 31 31 30 31 30 31

The table below defines a function

Q=g(n)Q=g\left(n\right)
. Remember, this notation tells us that
gg
is the name of the function that takes the input
nn
and gives the output
Q.Q\text{.}{\hspace{0.17em}}

nn
1 2 3 4 5
QQ
8 6 7 6 8

The table below displays the age of children in years and their corresponding heights. This table displays just some of the data available for the heights and ages of children. We can see right away that this table does not represent a function because the same input value, 5 years, has two different output values, 40 in. and 42 in.

Age in years,
 a \text{ }a\text{ }
(input)
5 5 6 7 8 9 10
Height in inches,
 h \text{ }h\text{ }
(output)
40 42 44 47 50 52 54

How To: Given a table of input and output values, determine whether the table represents a function.

  1. Identify the input and output values.
  2. Check to see if each input value is paired with only one output value. If so, the table represents a function.

Example 5: Identifying Tables that Represent Functions

Which table, a), b), or c), represents a function (if any)?

a)

Table A
Input Output
2 1
5 3
8 6
b)

Table B
Input Output
–3 5
0 1
4 5
c)

Table C
Input Output
1 0
5 2
5 4

Solution

a) and b) define functions. In both, each input value corresponds to exactly one output value. c) does not define a function because the input value of 5 corresponds to two different output values.

When a table represents a function, corresponding input and output values can also be specified using function notation.

The function represented by a) can be represented by writing

f(2)=1,f(5)=3,and f(8)=6f\left(2\right)=1,f\left(5\right)=3,\text{and }f\left(8\right)=6

Similarly, the statements

g(3)=5,g(0)=1,and g(4)=5g\left(-3\right)=5,g\left(0\right)=1,\text{and }g\left(4\right)=5
 represent the function in b).

c) cannot be expressed in a similar way because it does not represent a function.
