- Describe the biochemical structure of deoxyribonucleotides
- Identify the base pairs used in the synthesis of deoxyribonucleotides
- Explain why the double helix of DNA is described as antiparallel
In Microbial Metabolism
, we discussed three classes of macromolecules: proteins, lipids, and carbohydrates. In this chapter, we will discuss a fourth class of macromolecules: nucleic acids. Like other macromolecules, nucleic acids
are composed of monomers, called nucleotides
, which are polymerized to form large strands. Each nucleic acid strand contains certain nucleotides that appear in a certain order within the strand, called its base sequence
. The base sequence of deoxyribonucleic acid (DNA)
is responsible for carrying and retaining the hereditary information in a cell. In Mechanisms of Microbial Genetics, we will discuss in detail the ways in which DNA uses its own base sequence to direct its own synthesis, as well as the synthesis of RNA
and proteins, which, in turn, gives rise to products with diverse structure and function. In this section, we will discuss the basic structure and function of DNA.
The building blocks of nucleic acids are nucleotides. Nucleotides that compose DNA are called deoxyribonucleotides
. The three components of a deoxyribonucleotide are a five-carbon sugar called deoxyribose
, a phosphate group, and a nitrogenous base
, a nitrogen-containing ring structure that is responsible for complementary base pairing
between nucleic acid strands (Figure 1). The carbon atoms of the five-carbon deoxyribose are numbered 1ʹ, 2ʹ, 3ʹ, 4ʹ, and 5ʹ (1ʹ is read as "one prime"). A nucleoside
comprises the five-carbon sugar and nitrogenous base.
Figure 1. (a) Each deoxyribonucleotide is made up of a sugar called deoxyribose, a phosphate group, and a nitrogenous base—in this case, adenine. (b) The five carbons within deoxyribose are designated as 1ʹ, 2ʹ, 3ʹ, 4ʹ, and 5ʹ.
The deoxyribonucleotide is named according to the nitrogenous bases
(Figure 2). The nitrogenous bases adenine
(A) and guanine
(G) are the purines
; they have a double-ring structure with a six-carbon ring fused to a five-carbon ring. The pyrimidines
(C) and thymine
(T), are smaller nitrogenous bases that have only a six-carbon ring structure.
Figure 2. Nitrogenous bases within DNA are categorized into the two-ringed purines adenine and guanine and the single-ringed pyrimidines cytosine and thymine. Thymine is unique to DNA.
Individual nucleoside triphosphates combine with each other by covalent bonds known as 5ʹ-3ʹ phosphodiester bonds
, or linkages whereby the phosphate group attached to the 5ʹ carbon of the sugar of one nucleotide bonds to the hydroxyl group of the 3ʹ carbon of the sugar of the next nucleotide. Phosphodiester bonding between nucleotides forms the sugar-phosphate backbone
, the alternating sugar-phosphate structure composing the framework of a nucleic acid strand (Figure 3). During the polymerization process, deoxynucleotide triphosphates (dNTP) are used. To construct the sugar-phosphate backbone, the two terminal phosphates are released from the dNTP as a pyrophosphate. The resulting strand of nucleic acid has a free phosphate group at the 5ʹ carbon end and a free hydroxyl group at the 3ʹ carbon end. The two unused phosphate groups from the nucleotide triphosphate are released as pyrophosphate during phosphodiester bond formation. Pyrophosphate is subsequently hydrolyzed, releasing the energy used to drive nucleotide polymerization.
Figure 3. Phosphodiester bonds form between the phosphate group attached to the 5ʹ carbon of one nucleotide and the hydroxyl group of the 3ʹ carbon in the next nucleotide, bringing about polymerization of nucleotides in to nucleic acid strands. Note the 5ʹ and 3ʹ ends of this nucleic acid strand.
Think about It
- What is meant by the 5ʹ and 3ʹ ends of a nucleic acid strand?
Discovering the Double Helix
By the early 1950s, considerable evidence had accumulated indicating that DNA was the genetic material of cells, and now the race was on to discover its three-dimensional structure. Around this time, Austrian biochemist Erwin Chargaff
(1905–2002) examined the content of DNA
in different species and discovered that adenine, thymine, guanine, and cytosine were not found in equal quantities, and that it varied from species to species, but not between individuals of the same species. He found that the amount of adenine was very close to equaling the amount of thymine, and the amount of cytosine was very close to equaling the amount of guanine, or A = T and G = C. These relationships are also known as Chargaff’s rules
Figure 4. The X-ray diffraction pattern of DNA shows its helical nature. (credit: National Institutes of Health)
Other scientists were also actively exploring this field during the mid-20th century. In 1952, American scientist Linus Pauling
(1901–1994) was the world’s leading structural chemist and odds-on favorite to solve the structure of DNA. Pauling had earlier discovered the structure of protein α helices, using X-ray diffraction
, and, based upon X-ray diffraction images of DNA made in his laboratory, he proposed a triple-stranded model of DNA. At the same time, British researchers Rosalind Franklin
(1920–1958) and her graduate student R.G. Gosling
were also using X-ray diffraction to understand the structure of DNA (Figure 4). It was Franklin’s scientific expertise that resulted in the production of more well-defined X-ray diffraction images of DNA that would clearly show the overall double-helix structure of DNA.
James Watson (1928–), an American scientist, and Francis Crick (1916–2004), a British scientist, were working together in the 1950s to discover DNA’s structure. They used Chargaff’s rules
and Wilkins’ X-ray diffraction
images of DNA fibers to piece together the purine-pyrimidine pairing of the double helical DNA molecule (Figure 5). In April 1953, Watson and Crick
published their model of the DNA double helix
. The same issue additionally included papers by Wilkins and colleagues, each describing different aspects of the molecular structure of DNA. In 1962, James Watson, Francis Crick, and Maurice Wilkins were awarded the Nobel Prize in Physiology and Medicine. Unfortunately, by then Franklin had died, and Nobel prizes at the time were not awarded posthumously. Work continued, however, on learning about the structure of DNA. In 1973, Alexander Rich
(1924–2015) and colleagues were able to analyze DNA crystals to confirm and further elucidate DNA structure.
Figure 5. In 1953, James Watson and Francis Crick built this model of the structure of DNA, shown here on display at the Science Museum in London.
Think about It
- Which scientists are given most of the credit for describing the molecular structure of DNA?
Watson and Crick
proposed that DNA
is made up of two strands that are twisted around each other to form a right-handed helix. The two DNA strands are antiparallel
, such that the 3ʹ end of one strand faces the 5ʹ end of the other (Figure 6). The 3ʹ end of each strand has a free hydroxyl group, while the 5ʹ end of each strand has a free phosphate group. The sugar and phosphate of the polymerized nucleotides form the backbone of the structure, whereas the nitrogenous bases are stacked inside. These nitrogenous bases on the interior of the molecule interact with each other, base pairing.
Analysis of the diffraction patterns of DNA has determined that there are approximately 10 bases per turn in DNA. The asymmetrical spacing of the sugar-phosphate backbones generates major grooves (where the backbone is far apart) and minor grooves (where the backbone is close together) (Figure 6). These grooves are locations where proteins can bind to DNA. The binding of these proteins can alter the structure of DNA, regulate replication
, or regulate transcription
of DNA into RNA.

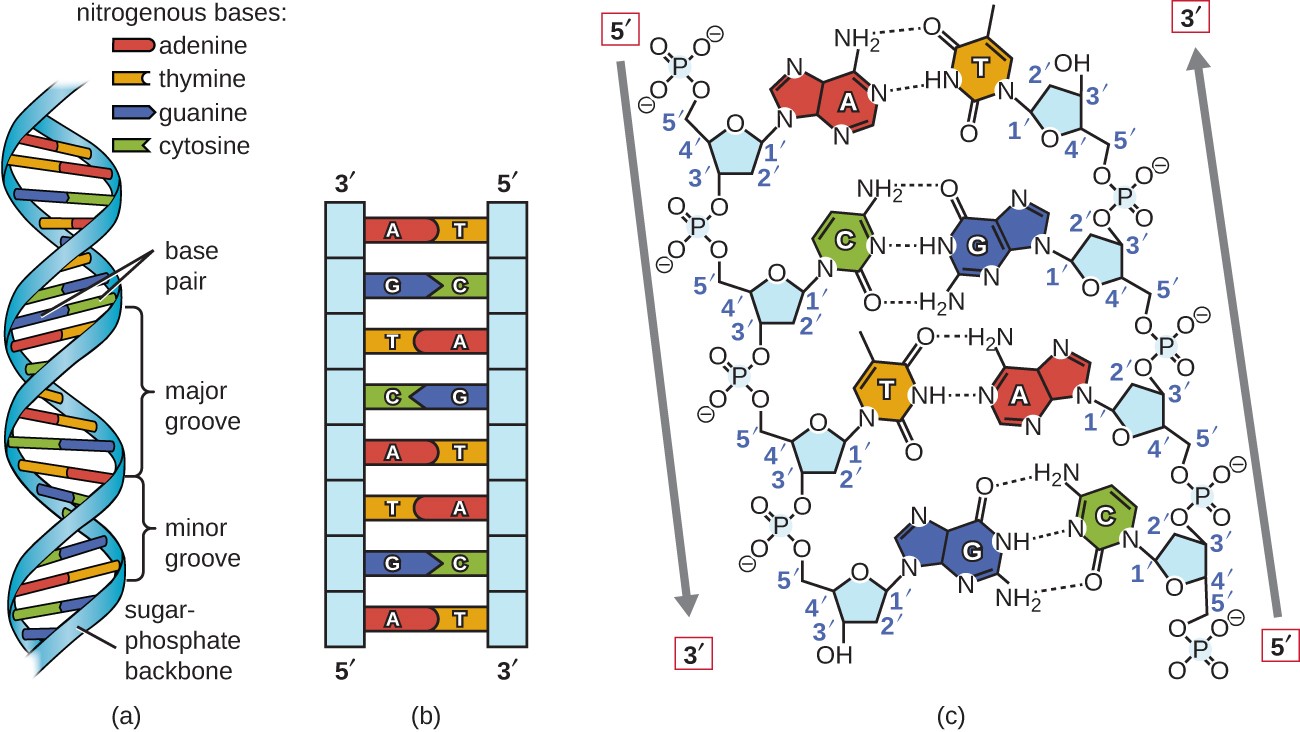

Figure 6. Watson and Crick
proposed the double helix model for DNA. (a) The sugar-phosphate backbones are on the outside of the double helix and purines and pyrimidines form the "rungs" of the DNA helix ladder. (b) The two DNA strands are antiparallel to each other. (c) The direction of each strand is identified by numbering the carbons (1 through 5) in each sugar molecule. The 5ʹ end is the one where carbon #5 is not bound to another nucleotide; the 3ʹ end is the one where carbon #3 is not bound to another nucleotide.
Base pairing takes place between a purine and pyrimidine. In DNA, adenine (A) and thymine (T) are complementary base pairs
, and cytosine (C) and guanine (G) are also complementary base pairs, explaining Chargaff’s rules
(Figure 7). The base pairs are stabilized by hydrogen bonds; adenine and thymine form two hydrogen bonds between them, whereas cytosine and guanine form three hydrogen bonds between them.
Figure 7. Hydrogen bonds form between complementary nitrogenous bases on the interior of DNA.
In the laboratory, exposing the two DNA strands of the double helix to high temperatures or to certain chemicals can break the hydrogen bonds between complementary bases, thus separating the strands into two separate single strands of DNA (single-stranded DNA [ssDNA
]). This process is called DNA denaturation
and is analogous to protein denaturation, as described in Proteins
. The ssDNA strands can also be put back together as double-stranded DNA (dsDNA
), through reannealing or renaturing by cooling or removing the chemical denaturants, allowing these hydrogen bonds to reform. The ability to artificially manipulate DNA in this way is the basis for several important techniques in biotechnology (Figure 8). Because of the additional hydrogen bonding between the C = G base pair, DNA with a high GC content is more difficult to denature than DNA with a lower GC content.
Figure 8. In the laboratory, the double helix can be denatured to single-stranded DNA through exposure to heat or chemicals, and then renatured through cooling or removal of chemical denaturants to allow the DNA strands to reanneal. (credit: modification of work by Hernández-Lemus E, Nicasio-Collazo LA, Castañeda-Priego R)
View an animation on DNA structure
from the DNA Learning Center to learn more.
Think about It
- What are the two complementary base pairs of DNA and how are they bonded together?
DNA stores the information needed to build and control the cell. The transmission of this information from mother to daughter cells is called vertical gene transfer
and it occurs through the process of DNA replication. DNA is replicated when a cell makes a duplicate copy of its DNA, then the cell divides, resulting in the correct distribution of one DNA copy to each resulting cell. DNA can also be enzymatically degraded and used as a source of nucleosides and nucleotides for the cell. Unlike other macromolecules, DNA does not serve a structural role in cells.
Think about It
- How does DNA transmit genetic information to offspring?
Paving the Way for Women in Science and Health Professions
Historically, women have been underrepresented in the sciences and in medicine, and often their pioneering contributions have gone relatively unnoticed. For example, although Rosalind Franklin
performed the X-ray diffraction
studies demonstrating the double helical structure of DNA, it is Watson and Crick
who became famous for this discovery, building on her data. There still remains great controversy over whether their acquisition of her data was appropriate and whether personality conflicts and gender bias contributed to the delayed recognition of her significant contributions. Similarly, Barbara McClintock
did pioneering work in maize (corn) genetics from the 1930s through 1950s, discovering transposons
(jumping genes), but she was not recognized until much later, receiving a Nobel Prize in Physiology or Medicine in 1983 (Figure 9).
Today, women still remain underrepresented in many fields of science and medicine. While more than half of the undergraduate degrees in science are awarded to women, only 46% of doctoral degrees in science are awarded to women. In academia, the number of women at each level of career advancement continues to decrease, with women holding less than one-third of the positions of Ph.D.-level scientists in tenure-track positions, and less than one-quarter of the full professorships at 4-year colleges and universities. Even in the health professions, like nearly all other fields, women are often underrepresented in many medical careers and earn significantly less than their male counterparts, as shown in a 2013 study published by the Journal of the American Medical Association
Why do such disparities continue to exist and how do we break these cycles? The situation is complex and likely results from the combination of various factors, including how society conditions the behaviors of girls from a young age and supports their interests, both professionally and personally. Some have suggested that women do not belong in the laboratory, including Nobel Prize winner Tim Hunt, whose 2015 public comments suggesting that women are too emotional for science were met with widespread condemnation.
Perhaps girls should be supported more from a young age in the areas of science and math (Figure 9). Science, technology, engineering, and mathematics (STEM) programs sponsored by the American Association of University Women (AAUW) and National Aeronautics and Space Administration (NASA) are excellent examples of programs that offer such support. Contributions by women in science should be made known more widely to the public, and marketing targeted to young girls should include more images of historically and professionally successful female scientists and medical professionals, encouraging all bright young minds, including girls and women, to pursue careers in science and medicine.
Figure 9. (a) Barbara McClintock’s work on maize genetics in the 1930s through 1950s resulted in the discovery of transposons, but its significance was not recognized at the time. (b) Efforts to appropriately mentor and to provide continued societal support for women in science and medicine may someday help alleviate some of the issues preventing gender equality at all levels in science and medicine. (credit a: modification of work by Smithsonian Institution; credit b: modification of work by Haynie SL, Hinkle AS, Jones NL, Martin CA, Olsiewski PJ, Roberts MF)
Clinical Focus: Aamir, Part 2
This example continues Aamir’s story that started in Using Microbiology to Discover the Secrets of Life
Based upon his symptoms, Aamir’s physician suspects that he is suffering from a foodborne illness that he acquired during his travels. Possibilities include bacterial infection (e.g., enterotoxigenic E. coli
, Vibrio cholerae
, Campylobacter jejuni
), viral infection (rotavirus or norovirus), or protozoan infection (Giardia lamblia
, Cryptosporidium parvum
, or Entamoeba histolytica
His physician orders a stool sample to identify possible causative agents (e.g., bacteria, cysts) and to look for the presence of blood because certain types of infectious agents (like C. jejuni
, and E. histolytica
) are associated with the production of bloody stools.
Aamir’s stool sample showed neither blood nor cysts. Following analysis of his stool sample and based upon his recent travel history, the hospital physician suspected that Aamir was suffering from traveler’s diarrhea caused by enterotoxigenic E. coli
), the causative agent of most traveler’s diarrhea. To verify the diagnosis and rule out other possibilities, Aamir’s physician ordered a diagnostic lab test of his stool sample to look for DNA sequences encoding specific virulence factors of ETEC. The physician instructed Aamir to drink lots of fluids to replace what he was losing and discharged him from the hospital.
ETEC produces several plasmid-encoded virulence factors that make it pathogenic compared with typical E. coli
. These include the secreted toxins heat-labile enterotoxin (LT)
and heat-stabile enterotoxin (ST)
, as well as colonization factor (CF)
. Both LT and ST cause the excretion of chloride ions from intestinal cells to the intestinal lumen, causing a consequent loss of water from intestinal cells, resulting in diarrhea. CF encodes a bacterial protein that aids in allowing the bacterium to adhere to the lining of the small intestine.
- Why did Aamir’s physician use genetic analysis instead of either isolation of bacteria from the stool sample or direct Gram stain of the stool sample alone?
We’ll return to Aamir’s example in later pages.
Key Concepts and Summary
- Nucleic acids are composed of nucleotides, each of which contains a pentose sugar, a phosphate group, and a nitrogenous base. Deoxyribonucleotides within DNA contain deoxyribose as the pentose sugar.
- DNA contains the pyrimidines cytosine and thymine, and the purines adenine and guanine.
- Nucleotides are linked together by phosphodiester bonds between the 5ʹ phosphate group of one nucleotide and the 3ʹ hydroxyl group of another. A nucleic acid strand has a free phosphate group at the 5ʹ end and a free hydroxyl group at the 3ʹ end.
- Chargaff discovered that the amount of adenine is approximately equal to the amount of thymine in DNA, and that the amount of the guanine is approximately equal to cytosine. These relationships were later determined to be due to complementary base pairing.
- Watson and Crick, building on the work of Chargaff, Franklin and Gosling, and Wilkins, proposed the double helix model and base pairing for DNA structure.
- DNA is composed of two complementary strands oriented antiparallel to each other with the phosphodiester backbones on the exterior of the molecule. The nitrogenous bases of each strand face each other and complementary bases hydrogen bond to each other, stabilizing the double helix.
- Heat or chemicals can break the hydrogen bonds between complementary bases, denaturing DNA. Cooling or removing chemicals can lead to renaturation or reannealing of DNA by allowing hydrogen bonds to reform between complementary bases.
- DNA stores the instructions needed to build and control the cell. This information is transmitted from parent to offspring through vertical gene transfer.
Which of the following is not found within DNA?
- phosphodiester bonds
- complementary base pairing
- amino acids
If 30% of the bases within a DNA molecule are adenine, what is the percentage of thymine?
Which of the following statements about base pairing in DNA is incorrect?
- Purines always base pairs with pyrimidines.
- Adenine binds to guanine.
- Base pairs are stabilized by hydrogen bonds.
- Base pairing occurs at the interior of the double helix.
If a DNA strand contains the sequence 5ʹ-ATTCCGGATCGA-3ʹ, which of the following is the sequence of the complementary strand of DNA?
During denaturation of DNA, which of the following happens?
- Hydrogen bonds between complementary bases break.
- Phosphodiester bonds break within the sugar-phosphate backbone.
- Hydrogen bonds within the sugar-phosphate backbone break.
- Phosphodiester bonds between complementary bases break.
Fill in the Blank
The end of a nucleic acid strand with a free phosphate group is called the ________.
The work of Rosalind Franklin and R.G. Gosling was important in demonstrating the helical nature of DNA.
The A-T base pair has more hydrogen bonding than the C-G base pair.
Think about It
- What is the role of phosphodiester bonds within the sugar-phosphate backbone of DNA?
- What is meant by the term "antiparallel?"
- Why is DNA with a high GC content more difficult to denature than that with a low GC content?
- In considering the structure of the DNA double helix, how would you expect the structure to differ if there was base pairing between two purines? Between two pyrimidines?
- A certain DNA sample is found to have a makeup consisting of 22% thymine. Use Chargaff’s rules to fill in the percentages for the other three nitrogenous bases.
