Church Architecture

Many of Europe’s medieval cathedrals are museums in their own right, housing fantastic examples of craftsmanship and works of art. Additionally, the buildings themselves are impressive. Although architectural styles varied from place to place, building to building, there are some basic features that were fairly universal in monumental churches built in the Middle Ages, and the prototype for that type of building was the Roman basilica.

A typical basilica floor plan. The basic structure is a rectangle, with an entrance on one of the longer sides of the building. There is a semi-circle porch directly across the basilica from the entrance. The aisles and the nave point toward the side of the building rather than the entrance. The ambulatory is at the head of the nave, on one of the short sides of the basilica. There is another aisle at the remaining side of the basilica. Figure 1. Basilica of Maxentius Floor plan


Prototype: The Ancient Roman Basilica

In ancient Rome, the basilica was created as a place for tribunals and other types of business. The building was rectangular in shape, with the long, central portion of the hall made up of the nave. Here the interior reached its fullest height. The nave was flanked on either side by a colonnade that delineated the side aisles, which were of a lower height than the nave. Because the side aisles were lower, the roof over this section was below the roofline of the nave, allowing for windows near the ceiling of the nave.

This band of windows was called the clerestory. At the far end of the nave, away from the main door, was a semi-circular extension, usually with a half-dome roof. This area was the apse, and is where the magistrate or other senior officials would hold court.

Because this plan allowed for many people to circulate within a large, and awesome, space, the general plan became an obvious choice for early Christian buildings. The religious rituals, masses, and pilgrimages that became commonplace by the Middle Ages were very different from today’s services, and to understand the architecture it is necessary to understand how the buildings were used and the components that made up these massive edifices.

The Medieval Church Plan

Although medieval churches are usually oriented east to west, they all vary slightly. When a new church was to be built, the patron saint was selected and the altar location laid out. On the saint’s day, a line would be surveyed from the position of the rising sun through the altar site and extending in a westerly direction. This was the orientation of the new building.

A typical cathedral is constructed in a cross shape. The front of the cathedral (the bottom of the cross) faces west so the the curved alcove at the top of the cross faces east. A cathedral is divided into ten typical areas: Narthex, nave, aisle, tower, crossing, transept, porch, choir, ambulatory, and chevette. The Narthex is the entry way at the west door. The nave is the main hall of the cathedral, typically where the congregation will sit. On either side of the nave are the aisles. These are typically divided from the nave by archways. On either side of the Narthex are two towers. At the front of the nave is the crossing; this is where the two lines of the cross intersect. There are transepts to the north and south of the crossing. The southern transept typically has a porch extending to its south. To the east of the crossing is the choir. The aisles extend to either side of the straight portion of the choir. The curved alcove is surrounded by the Ambulatory, which has three alcoves spurring from it which are called chevettes. Figure 2. Typical cathedral schematic plan


The entrance foyer is called the narthex, but this is not found in all medieval churches. Daily access may be through a door on the north or south side. The largest, central, western door may have been reserved for ceremonial purposes.

The Church Plan

Inside, you should imagine the interior space without the chairs or pews that we are used to seeing today. Unlike in a Roman basilica, the side aisles run behind a series of arches rather than columns. In very extensive buildings there may be two side aisles, with the ceiling of the outer one lower than the one next to the nave. This hierarchy of size and proportion extended to the major units of the plan—the bays. A bay is the square unit in the arcade defined by a vault, the section supported by consecutive pillars. Typically, the width of the nave was equal to two bays. The vault is the arched roof or ceiling, or a section of it.

The major arcade at the ground floor is topped by a second arcade, called the gallery, which is topped by the clerestory or a third arcade level. The arcade just below the clerestory is called the triforium. The nave was used for the procession of the clergy to the altar. The main altar was basically in the position of the basilican apse, although in some designs it is further forward. The area around the altar—the choir or chancel—was reserved for the clergy or monks, who performed services throughout the day.

The cathedrals and former monastery churches are much larger than needed for the local population. They expected and received numerous pilgrims who came to various shrines and altars within the church where they might pray to a supposed piece of the true cross, or a bone of a martyr, or the tomb of a king. The pilgrims entered the church and found their way to the chapel or altar of their desire—therefore, the side aisles made an efficient path for pilgrims to come and go without disrupting the daily services.

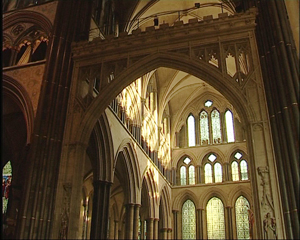

The ceiling is vaulted and the boundary of the transept is framed with an archway. The exterior wall has several stained glass windows. Figure 3. Transept Salisbury Cathedral (photo taken from video footage by Richard Spanswick)


Development of this plan over time shows that very soon the apse was elongated, adding more room to the choir. Additionally, the termini of the aisles developed into small wings themselves, known as transepts. These were also extended, providing room for more tombs, more shrines, and more pilgrims.

The area where the axes of the nave and transepts meet is called, logically, the crossing.

An aisle often surrounds the apse, running behind the altar. Called the ambulatory, this aisle accessed additional small chapels, calledradiating chapels or chevets. Of course, there are many variations on these typical building blocks of medieval church design. Different regions had different tastes, greater or lesser financial power, more or less experienced architects and masons, which created the diversity of medieval buildings still standing today.
