In a computer system, a chipset
is a set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found on the motherboard. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Intel ICH7 Southbridge on Intel D945GCPE Desktop Board
In computing, the term chipset
commonly refers to a set of specialized chips on a computer's motherboard or an expansion card. In personal computers, the first chipset for the IBM PC AT of 1984 was the NEAT chipset developed by Chips and Technologies for the Intel 80286 CPU.
Diagram of Commodore Amiga's Original Chip Set
In home computers, game consoles and arcade-game hardware of the 1980s and 1990s, the term chipset was used for the custom audio and graphics chips. Examples include the Commodore Amiga's Original Chip Set or SEGA's System 16 chipset.
Based on Intel Pentium-class microprocessors, the term chipset
often refers to a specific pair of chips on the motherboard: the northbridge
and the southbridge
. The northbridge links the CPU to very high-speed devices, especially RAM and graphics controllers, and the southbridge connects to lower-speed peripheral buses (such as PCIor ISA). In many modern chipsets, the southbridge contains some on-chip integrated peripherals, such as Ethernet, USB, and audio devices.
Motherboards and their chipsets often come from different manufacturers. As of 2015, manufacturers of chipsets for x86 motherboards include AMD, Broadcom, Intel, NVIDIA,SiS and VIA Technologies. Apple computers and Unix workstations have traditionally used custom-designed chipsets. Some server manufacturers also develop custom chipsets for their products.
In the 1980s Chips and Technologies pioneered the manufacturing of chipsets for PC-compatible computers. Computer systems produced since then often share commonly used chipsets, even across widely disparate computing specialties. For example, the NCR 53C9x, a low-cost chipset implementing a SCSI interface to storage devices, could be found inUnix machines such as the MIPS Magnum, embedded devices, and personal computers.

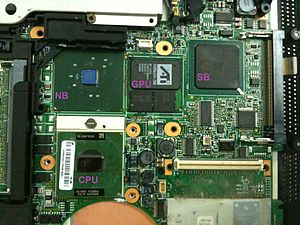

A part of an IBM T42 laptop motherboard. CPU: Central processing unit. NB: Northbridge. GPU: Graphics processing unit. SB: Southbridge.
Move toward processor integration in PCs
Traditionally in x86 computers, the processor's primary connection to the rest of the machine is through the motherboard chipset's northbridge. The northbridge is directly responsible for communications with high-speed devices (system memory and primary expansion buses, such as PCIe, AGP and PCI cards, being common examples) and conversely any system communication back to the processor. This connection between the processor and northbridge is traditionally known as the front side bus (FSB). Requests to resources not directly controlled by the northbridge are offloaded to the southbridge, with the northbridge being an intermediary between the processor and the southbridge. The southbridge traditionally handles "everything else", generally lower-speed peripherals and board functions (the largest being hard disk and storage connectivity) such as USB, parallel and serial communications. The connection between the northbridge and southbridge does not have a common name, but is usually a high-speed interconnect proprietary to the chipset vendor.
Before 2003, any interaction between a CPU and main memory or an expansion device such as a graphics card(s)—whether AGP, PCI or integrated into the motherboard—was directly controlled by the northbridge IC on behalf of the processor. This made processor performance highly dependent on the system chipset, especially the northbridge's memory performance and ability to shuttle this information back to the processor. In 2003, however, AMD's introduction of the Athlon 64-bit series of processors
changed this. The Athlon64 marked the introduction of an integrated memory controller being incorporated into the processor itself thus allowing the processor to directly access and handle memory, negating the need for a traditional northbridge to do so. Intel followed suit in 2008 with the release of its Core i series CPUs and the X58 platform. In newer processors integration has further increased, primarily inclusion of the system's primary PCIe controller and integrated graphics directly on the CPU itself. As fewer functions are left un-handled by the processor, chipset vendors have condensed the remaining northbridge and southbridge functions into a single chip. Intel's version of this is the "Platform Controller Hub" (PCH), effectively an enhanced southbridge for the remaining peripherals as traditional northbridge duties, such as memory controller, expansion bus (PCIe) interface (though the chipset often contains secondary PCIe connections), and even on-board video controller, are integrated into the CPU itself. However, the Platform Controller Hub was integrated into the processor for certain models of Intel's Skylake processors.
